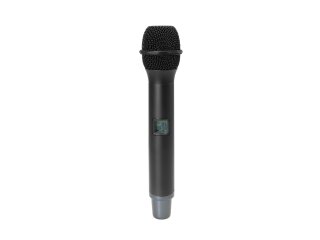

Microphone with PLL multifrequency transmitter for WAM-402, 823-832 + 863-865 MHz
- Dynamic hand-held microphone with UHF pilot tone technology (PLL)
- Ergonomic aluminum alloy housing, applicable for touring
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- RF output power Hi/Low adjustable
- Gain level Hi/Mid/Low adjustable
- Polar pattern: Cardioid
- Operating range up to 60m
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 863 - 865 MHz License-free and approved in Europe
- OLED display
- Charge status indicator
Package contents
- 1 x microphone, 1 x user manual, 1 x declaration of conformity
| Type: |
Hand-held transmitter |
| Power supply: |
3V DC |
| Capsule type: |
Dynamic |
| Polar pattern: |
Cardioid |
| Battery: |
2 x Mignon (AA) (not included) |
| Range: |
Range up to 60m |
| Frequency band: |
UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Switching bandwidth: |
11 MHz |
| RF power output: |
10 mW |
| Modulation: |
FM |
| Frequency selection: |
90 switchable frequencies
In 10 groups with up to 10 preset frequencies each |
| Display type: |
OLED display |
| Display: |
Charge status indicator , frequency , channel |
| Control elements: |
Gain-switch (high-mid-low), transmitter power switch (high-low) |
| Switch: |
On/off/mute switch |
| Material: |
Aluminum |
| Color: |
Black |
| Dimensions: |
Length: 26,5 cm
Diameter: Ø 5,6 cm |
| Weight: |
0,31 kg |
| Item information |
Value |
| Shipping weight: |
0,60 kg
|
| Item weight: |
0,45 kg
|
| Dimensions
( Length × Width × Height ):
|
7,00 × 29,00 × 12,00 cm |
