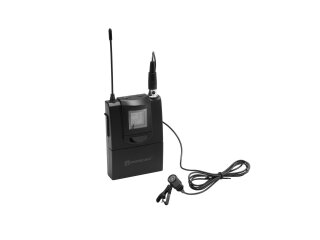

UHF pocket transmitter for model WAM-402, 823-832 + 863-865 MHz
- Pilot frequency squelch technology delete wireless RF interference
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- LED for battery status, frequency, channel and group
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 863 - 865 MHz License-free and approved in Europe
- Up to 8 transmitters can be operated in parallel without interference
transmitter
- Operating range up to 80m
microphone
Package contents
- 1 x transmitter, 1 x microphone, 1 x windshield, 1 x user manual, 1 x declaration of conformity
| Type: |
Bodypack with microphone |
| Power consumption: |
0,42 W |
| Frequency band: |
UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Switching bandwidth: |
11 MHz |
| Parallel mode: |
Max. 8 transmitter |
| RF power output: |
10 mW |
| Modulation: |
FM |
| Frequency selection: |
90 switchable frequencies
In 10 groups with up to 10 preset frequencies each |
| Weight: |
0,11 kg |
| Transmitter |
| Power supply: |
3V DC |
| Power connection: |
Battery/battery pack |
| Battery: |
2 x Mignon (AA) (not included) |
| Range: |
Range up to 80m |
| Control elements: |
Transmitter power switch (high-low) |
| Switch: |
On/off switch; Mic/Ins switch |
| Material: |
Plastic |
| Color: |
Black |
| Dimensions: |
Width: 6,5 cm
Depth: 2,5 cm
Height: 9,5 cm |
| Weight: |
0,086 kg |
| Microphone |
| Type: |
Lavalier microphone |
| Cable length: |
1,20 m |
| Capsule type: |
Electret |
| Polar pattern: |
Cardioid |
| Frequency range: |
60 - 12000 Hz |
| Sensitivity: |
-42 dB |
| Connector type: |
Mini XLR (F) 4-pin |
| Material: |
Metal |
| Color: |
Black |
| Weight: |
0,020 kg |
| Item information |
Value |
| Shipping weight: |
0,30 kg
|
| Item weight: |
0,25 kg
|
| Dimensions
( Length × Width × Height ):
|
7,00 × 29,00 × 12,00 cm |
