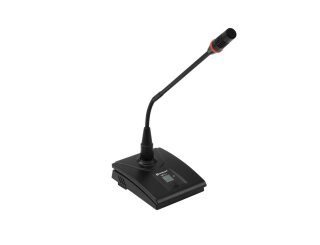

UHF gooseneck microphone for model WAM-402, 823-832 + 863-865 MHz
- Gooseneck microphone with UHF pilot tone technology (PLL)
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Gain control and low cut switch
- Operating range up to 60m
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 863 - 865 MHz License-free and approved in Europe
- LCD display
- Charge status indicator
- Up to 8 transmitters can be operated in parallel without interference
Package contents
- 1 x microphone, 1 x windshield, 1 x user manual, 1 x declaration of conformity
| Type: |
Gooseneck microphone |
| Power supply: |
3V DC |
| Power connection: |
Battery/battery pack |
| Capsule type: |
Condenser |
| Battery: |
2 x Mignon (AA) (not included) |
| Low cut: |
120Hz, switchable |
| Gain: |
Input: ± 10 dB |
| Range: |
Range up to 60m |
| Frequency band: |
UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Switching bandwidth: |
11 MHz |
| Frequency stability: |
± 0,0005 % |
| Parallel mode: |
Max. 8 transmitter |
| RF power output: |
10 mW |
| Modulation: |
FM |
| Frequency selection: |
90 switchable frequencies
In 10 groups with up to 10 preset frequencies each |
| Display type: |
LCD display |
| Display: |
Charge status indicator , frequency , channel |
| Control elements: |
Transmitter power switch (high-low) |
| Connections: |
Input: microphone via 3-pin XLR (F) mounting version |
| Switch: |
On/off switch; low cut switch |
| Material: |
Metal |
| Color: |
Black |
| Dimensions: |
Width: 11,5 cm
Depth: 14 cm
Height: 48,5 cm |
| Weight: |
0,83 kg |
| Item information |
Value |
| Shipping weight: |
1,70 kg
|
| Item weight: |
1,30 kg
|
| Dimensions
( Length × Width × Height ):
|
45,00 × 12,00 × 14,00 cm |
