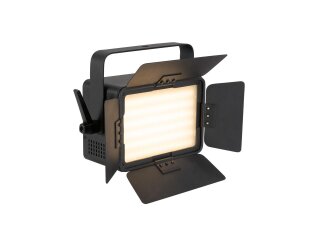

DMX-controlled surface light with 168 dual white LEDs, QuickDMX port and barn doors
- 4 barn doors to avoid blinding the audience and for protection during transport
- Energy-saving, durable and environmentally friendly
- Slim, rugged metal housing
- 84 powerful LEDs 0,5 W SMD 2835 warm white (WW)
- 84 powerful LEDs 0,5 W SMD 2835 cold white (CW)
- Pulse-width modulation variable
- Integrated show programs
- The device is cooled by passive convection cooling
- Control via quick select potentiometer for brightness and color temperature; stand-alone; DMX; master/slave function; sound to light via microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional)
- Preprogrammed in Light Captain; Colorchief
- Flicker-free
- With a beam angle of 120°
- Variable color temperature 2800 K - 6500 K
- Good color rendering index (CRI)
- With mounting bracket
- 4 digit 7-segment LED display
- Mains input and output for power linking up to 8 units
- Available in various colors
- For application areas such as: Video and photography; stage; Trade fair and shop fitting; installation
- Silent operation
- Application possibility: Suspended; on stand
Package contents
- 1 x spotlight, 1 x user manual, 1 x power cord
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
40 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: |
1 x IEC connector (F) mounting version |
| Fuse: |
T 1 A fuse replaceable |
| Lamp type: |
LED lamp |
| LED type: |
84 x 0,5 W SMD 2835 warm white (WW)
84 x 0,5 W SMD 2835 cold white (CW) |
| Flash rate: |
0 - 20 Hz |
| DMX channels: |
2; 4; 6 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Passive convection cooling |
| Control: |
Quick select potentiometer for brightness and color temperature; stand-alone; DMX; master/slave function; sound to light via microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional) |
| Preprogrammed in: |
Light Captain; Colorchief |
| Projection: |
Flicker-free |
| Beam angle: |
120° |
| Beam angle (1/2 peak): |
120° |
| Color temperature: |
2800K - 6500K adjustable |
| Color rendering index (CRI): |
80 Ra |
| Illuminance in Lux (lx): |
Cold white (CW) 1m: 539 lx, 3m: 73 lx, 6m: 21 lx
Warm white (WW) 1m: 529 lx, 3m: 72 lx, 6m: 21 lx
All 1m: 1063 lx, 3m: 143 lx, 6m: 43 lx |
| Housing color: |
Black |
| Attachment system: |
Mounting bracket |
| Display type: |
4 digit 7-segment LED display |
| Dimensions: |
Width: 28,1 cm
Depth: 11,0 cm
Height: 17,3 cm |
| Weight: |
1,84 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Photobiological safety: |
Risk Group 0 |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
2,70 kg
|
| Item weight: |
2,10 kg
|
| Dimensions
( Length × Width × Height ):
|
210.000,00 × 330.000,00 × 150.000,00 cm |
