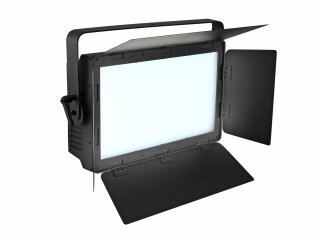

DMX-controlled surface light with 704 cold white LEDs, QuickDMX port and barn doors
- 704 powerful LEDs SMD 2835 cold white (CW)
- Energy-saving, durable and environmentally friendly
- 4 barn doors to avoid blinding the audience and for protection during transport
- Pulse-width modulation variable
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; quick select potentiometer for brightness and flash rate; master/slave function; sound to light via microphone; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional)
- Flicker-free
- With a beam angle of 120°
- Good color rendering index (CRI)
- With mounting bracket
- LCD display
- Slim, rugged metal housing
- For application areas such as: Video and photography; stage; Trade fair and shop fitting; mobile use
- Preprogrammed in Light Captain; Light´J
- Mains input and output for power linking up to 8 units
- Rugged carrying handle
- Silent operation
- Application possibility: Suspended; on stand
Package contents
- 1 x spotlight, 1 x power cord, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
140 W |
| IP classification: |
IP20 |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: |
P-Con (gray), mounting version |
| Fuse: |
T 3 A fuse replaceable |
| Lamp type: |
LED lamp |
| LED type: |
704 x SMD 2835 cold white (CW) |
| Flash rate: |
0 - 20 Hz |
| DMX channels: |
1; 2; 3 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Passive convection cooling |
| Control: |
Stand-alone; DMX; quick select potentiometer for brightness and flash rate; master/slave function; sound to light via microphone; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional) |
| Preprogrammed in: |
Light Captain; Light´J |
| Projection: |
Flicker-free |
| Beam angle: |
120° |
| Beam angle (1/2 peak): |
120° |
| Color temperature: |
6000K |
| Color rendering index (CRI): |
80 Ra |
| Illuminance in Lux (lx): |
Cold white (CW) 1m: 4111 lx, 3m: 598 lx, 6m: 182 lx |
| Housing color: |
Black |
| Attachment system: |
Mounting bracket |
| Display type: |
LCD display |
| Carrying handle: |
1 pc/pcs |
| Dimensions: |
Width: 56,5 cm
Depth: 25,5 cm
Height: 42,2 cm |
| Weight: |
7,70 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Photobiological safety: |
Risk Group 0 |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
11,00 kg
|
| Item weight: |
8,50 kg
|
| Dimensions
( Length × Width × Height ):
|
40,00 × 57,00 × 185,00 cm |
