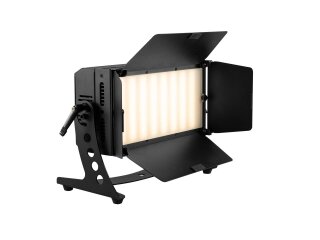

DMX-controlled surface light with 384 dual white LEDs, QuickDMX port, frost filter and barn doors
- Energy-saving, durable and environmentally friendly
- Additional frost filter provides a wide, soft and homogeneous light
- 4 barn doors to avoid blinding the audience and for protection during transport
- 192 powerful LEDs 0,5 W SMD 5730 cold white (CW)
- 192 powerful LEDs 0,5 W SMD 5730 warm white (WW)
- Dimmer electronic
- The device is cooled by temperature-controlled fan
- Control via quick select potentiometer for brightness and color temperature; DMX; master/slave function; stand-alone; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional)
- Preprogrammed in Light Captain; Colorchief
- Flicker-free
- With a beam angle of 120°
- Variable color temperature 2700 K - 5700 K
- Direct color temperature selection for 69 preset values
- Very high color rendering index (CRI)
- With mounting bracket
- LCD display
- Rubber feet
- Mains input and output for power linking up to 8 units
- Very quiet working noise
- For application areas such as: Video and photography; stage; Trade fair and shop fitting; theater
- Application possibility: Suspended; on stand
Package contents
- 1 x spotlight, 1 x power cord, 1 x frost filter, 2 x knurled screw, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
100 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: |
P-Con (gray), mounting version |
| Fuse: |
T 3,15 A fuse fix on board |
| Lamp type: |
LED lamp |
| LED type: |
192 x 0,5 W SMD 5730 cold white (CW)
192 x 0,5 W SMD 5730 warm white (WW) |
| Flash rate: |
1 - 20 Hz |
| DMX channels: |
2-1; 2-2; 3-1; 3-2; 4 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Temperature-controlled fan |
| Control: |
Quick select potentiometer for brightness and color temperature; DMX; master/slave function; stand-alone; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional) |
| Preprogrammed in: |
Light Captain; Colorchief |
| Projection: |
Flicker-free |
| Beam angle: |
120° |
| Beam angle (1/2 peak): |
120° |
| Color temperature: |
2700K - 5700K adjustable |
| Color rendering index (CRI): |
94 Ra |
| Illuminance in Lux (lx): |
Wide cold white (CW) 1m: 2324 lx, 3m: 276 lx, 6m: 83 lx
Wide warm white (WW) 1m: 2277 lx, 3m: 249 lx, 6m: 76 lx
Wide all 1m: 3530 lx, 3m: 407 lx, 6m: 124 lx
Narrow cold white (CW) 1m: 2789 lx, 3m: 327 lx, 6m: 98 lx
Narrow warm white (WW) 1m: 2542 lx, 3m: 297 lx, 6m: 94 lx
Narrow all 1m: 4167 lx, 3m: 508 lx, 6m: 150 lx |
| Housing color: |
Black |
| Attachment system: |
Mounting bracket |
| Display type: |
LCD display |
| Transport aid: |
Rubber feet |
| Material: |
Metal |
| Dimensions: |
Length: 34,7 cm
Width: 13,8 cm
Height: 21,1 cm |
| Weight: |
3,52 kg |
| Noise classification: |
Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Mounting bracket |
| Diameter mounting holes: |
1 x Ø11mm; 2 x Ø8mm; 8 x Ø15mm |
| Material: |
Metal, 2 mm |
| Power cord |
| Cable construction: |
3 x 1,0 mm² H05VV-F |
| Cable length: |
Approx. 1,2 m |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
5,10 kg
|
| Item weight: |
3,90 kg
|
| Dimensions
( Length × Width × Height ):
|
240.000,00 × 370.000,00 × 190.000,00 cm |
