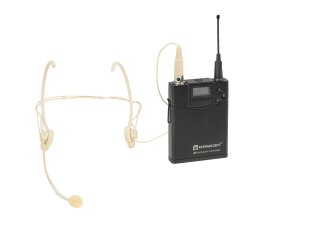

Bodypack transmitter with PLL multifrequency transmitter
- Durable aluminum alloy housing, applicable for touring
- Pilot frequency squelch technology delete wireless RF interference
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Adjustable input gain
- RF output power Hi/Low adjustable
- Lock function for prevents undesired changes to settings
- Up to 12 transmitters can be operated in parallel without interference
transmitter
- Operating range up to 80m
- OLED display
microphone
- Polar pattern: Omnidirectional
- For further information about this product, please refer to the Data Sheet under "Downloads"
Package contents
- 1 x transmitter, 1 x microphone, 1 x windshield, 1 x user manual, 1 x declaration of conformity
| Parallel mode: |
Max. 12 transmitter |
| Weight: |
0,22 kg |
| Transmitter |
| Type: |
Bodypack with microphone |
| Power supply: |
3V DC |
| Power connection: |
Battery/battery pack |
| Battery: |
2 x Mignon (AA) (not included) |
| Gain: |
0 dB
-6 dB
-12 dB |
| Range: |
Range up to 80m |
| Frequency band: |
UHF 522 - 554 MHz |
| Switching bandwidth: |
32 MHz |
| RF power output: |
10 mW (LO); 30 mW (HI) |
| Modulation: |
FM |
| Frequency selection: |
151 switchable frequencies
In 10 groups with up to 18 preset frequencies each |
| Display type: |
OLED display |
| Control elements: |
Transmitter power switch (high-low) |
| Connections: |
Output: Mini XLR (M) 4-pin mounting version |
| Switch: |
On/off/mute switch |
| Material: |
Aluminum |
| Color: |
Black |
| Dimensions: |
Width: 6,6 cm
Depth: 2,3 cm
Height: 8,4 cm |
| Weight: |
0,174 kg |
| Microphone |
| Type: |
Headset microphone |
| Power supply: |
2-10V DC |
| Cable length: |
1,2 m |
| Capsule type: |
Condenser
Size: Ø 5 mm x 6 mm |
| Polar pattern: |
Omnidirectional |
| Frequency range: |
50 - 18000 Hz |
| Sensitivity: |
-47 dB |
| Impedance: |
1800 Ohm |
| Connector type: |
Mini XLR (F) 4-pin |
| Color: |
Skin-colored |
| Weight: |
0,028 kg |
| Item information |
Value |
| Shipping weight: |
0,50 kg
|
| Item weight: |
0,35 kg
|
| Dimensions
( Length × Width × Height ):
|
7,00 × 29,00 × 115,00 cm |
