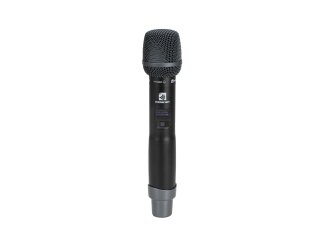

Hand-held microphone with PLL multifrequency transmitter
- Dynamic hand-held microphone with UHF pilot tone technology (PLL)
- Ergonomic aluminum alloy housing, applicable for touring
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- RF output power Hi/Low adjustable
- Gain level Hi/Mid/Low adjustable
- Capsule M-022
- Directly compatible with Shure's SM58 capsule
- Polar pattern: Super cardoid
- Operating range up to 80m
- OLED display
- Charge status indicator
- Up to 12 transmitters can be operated in parallel without interference
Package contents
- 1 x microphone, 1 x user manual, 1 x declaration of conformity
| Type: |
Hand-held transmitter |
| Power supply: |
3V DC |
| Capsule type: |
Dynamic |
| Polar pattern: |
Super cardoid |
| Battery: |
2 x Mignon (AA) (not included) |
| Frequency range: |
120 - 16000 Hz |
| Sensitivity: |
-53 dB |
| Max. SPL: |
145 dB |
| Range: |
Range up to 80m |
| Frequency band: |
UHF 522 - 554 MHz |
| Switching bandwidth: |
32 MHz |
| Parallel mode: |
Max. 12 transmitter |
| RF power output: |
10 mW (LO); 30 (HI) |
| Modulation: |
FM |
| Frequency selection: |
151 switchable frequencies
In 10 groups with up to 18 preset frequencies each |
| Display type: |
OLED display |
| Display: |
Charge status indicator , frequency , channel |
| Control elements: |
Gain-switch (high-mid-low), transmitter power switch (high-low) |
| Switch: |
On/off/mute switch |
| Material: |
Aluminum |
| Dimensions: |
Length: 26 cm
Diameter: Ø 5,4 cm |
| Weight: |
0,28 kg |
| Item information |
Value |
| Shipping weight: |
0,50 kg
|
| Item weight: |
0,41 kg
|
| Dimensions
( Length × Width × Height ):
|
75,00 × 29,00 × 115,00 cm |
