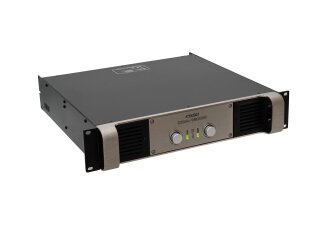

Class I stereo PA amplifier with SMPS, 2 x max. 6000 W (2 ohms), 2 x max. 3900 W (4 ohms)
- Low weight and height due to integrated switch mode power supply
- Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, concerts)
- Limiter and speaker switch-on delay
- 3 operating modes can be selected (stereo, parallel or bridged)
- Level control per channel
- Input sensitivity adjustable
- LED VU meter and LEDs for activated protective circuit (protect) and overload (clip) per channel
- Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
- Speaker outputs via lockable Speaker plugs
- Rugged steel chassis with aluminum front panel
- Highly efficient air flow from front to rear
- The device is cooled by temperature-controlled fan
- Built with NEUTRIK connector
- (19") 48.3 cm rack installation 2 U
- For application areas such as: Stage; concerts/FoH's; rental; mobile djs / entertainer; restaurants, bars and hotels; sports centres/gyms
Package contents
- 1 x amplifier, 1 x cover, 4 x foot, 1 x user manual
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
1050 W 1/8 power |
| Protection class: |
Protection class I |
| Output power: |
2 x max. 6000 W (2 ohms)
2 x max. 3900 W (4 ohms)
2 x max. 2300 W (8 ohms)
1 x max. 10000 W bridged (4 ohms)
1 x max. 6200 W bridged (8 ohms) |
| Power connection: |
Fixed power supply cord with safety plug |
| Cable length: |
1,6 m |
| Frequency range: |
20 - 20000 Hz |
| S/N ratio: |
>90 dB |
| THD: |
<0,05 % at 1 kHz |
| Cooling: |
3 x temperature-controlled fan , air flow from front to rear |
| Impedance: |
Input: 10 kOhm , unbal.
Input: 20 kOhm , bal. |
| Gain: |
38 dB/ 0,775 V
32 dB/ 1,0 V
26 dB/ 1,4 V |
| Housing color: |
Black |
| Circuitry: |
Class I |
| Slew rate: |
>10 V/µs |
| Damping factor: |
>200 |
| Control elements: |
Power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch, limiter selector |
| Controls: |
Overheat; overload; short-circuit; softstart; DC voltage; VHF; limiter |
| Status LED: |
Power, level meter, clip, protect |
| Connections: |
Input: line via 2 x 3-pin XLR (F) mounting version
Output: line via 2 x 3-pin XLR (M) mounting version
Output: speaker via 2 x speaker built-in socket (F) |
| Input sensitivity: |
0,775 V; 1,0 V; 1,4 V , switchable; 26 dB; 32 dB; 38 dB , switchable |
| Use of brands: |
Built with NEUTRIK connector |
| Material: |
Steel |
| Housing design: |
(19") 48.3 cm rack installation 2 U |
| Dimensions: |
Width: 48,3 cm
Depth: 44,0 cm
Height: 8,9 cm |
| Weight: |
14,20 kg |
| Item information |
Value |
| Shipping weight: |
21,00 kg
|
| Item weight: |
16,15 kg
|
| Dimensions
( Length × Width × Height ):
|
17,00 × 58,00 × 57,00 cm |
