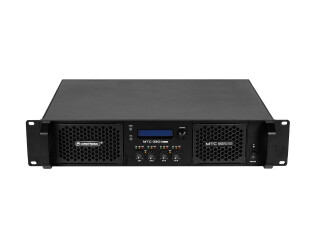

4-channel PA amplifier with DSP & SMPS, 4 x 800 W, 4 x 400 W
- Efficient Class D technology
- Full configuration and real-time network communication via the built-in Ethernet interface
- The intelligent software for allows convenient control with a computer
- Presets are easy to store, transfer and manage
- Up to 100 user presets storable in the device via software
- Digital signal processor FIR Filter
- Sample rate: 96 kHz
- 2 operating modes can be selected (stereo or bridge/100V)
- Extremely low weight and height due to integrated switch mode power supply
- Level control per channel
- 10-band parametric EQ per input and output
- Parametric filters can be set as Bell, High Shelf, Low Shelf, Notch, Allpass, Band Pass, High Pass, Low Pass
- Additionally up to 48 dB/octave for all outputs with Linkwitz-Riley filter
- Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
- LCD display
- 2 Ethernet ports for easy wiring
- The device can be connected via RJ-45 (F) mounting version to the PC in connection with DXO Software
firmware can be updated
- The device is cooled by temperature-controlled fan
- Highly efficient air flow from front to rear
- (19") 48.3 cm rack installation 2 U
- Compatible with Win XP, Win Vista, Win 7, Win 10, OS X 10,5 or better
- For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental; sports centres/gyms
Package contents
- 1 x amplifier, 1 x power cord, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
600 W 1/8 power |
| Protection class: |
Protection class I |
| Output power: |
4 x 800 W RMS (4 ohms)
4 x 400 W RMS (8 ohms)
2 x 1500 W RMS bridged (8 ohms)
4 x 200 W RMS (100 V)
2 x 1500 W RMS bridged (100 V) |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Cable length: |
1,2 m detachable |
| Frequency range: |
20 - 20000 Hz |
| S/N ratio: |
>119 dB |
| THD: |
<0,05 % at 1 kHz |
| Network connection: |
Protocol: Ethernet TCP/IP via 2x RJ-45 (F) mounting version |
| DSP: |
Digital signal processor FIR Filter |
| Cooling: |
1 x temperature-controlled fan , air flow from front to rear |
| Impedance: |
Input: 20 kOhm , bal.
Input: 10 kOhm , unbal. |
| Gain: |
28,2 dB
Bridged 34,2 dB |
| Filter: |
Linkwitz-Riley; Butterworth; Bessel; 6db/oct; 12db/oct; 18db/oct; 24db/oct; 48db/Okt |
| Delay: |
Input: 0 - 2000 ms |
| Housing color: |
Black |
| Sample rate: |
96 kHz |
| Circuitry: |
Class D |
| Damping factor: |
350 |
| Display type: |
LCD display |
| Control elements: |
Power switch, encoder, level control per channel, mode switch (stereo / bridged/100V), menu |
| Controls: |
Softstart; overheat; overload; short-circuit; DC voltage |
| Status LED: |
Power, signal, clip, bridged, protect |
| Connections: |
Input: line via 4 x 3-pin XLR
Link: line via 4 x 3-pin XLR
Output: DSP via 4 x 3-pin XLR (F) mounting version
Output: speaker via screw plug-in terminal
Output: 4 x speaker built-in socket (F)
Output: speaker (bridge) via 2 x speaker built-in socket (F)
2 x RJ-45 (F) mounting version |
| PC connect: |
DXO Software via RJ-45 (F) mounting version, firmware can be updated |
| Housing design: |
(19") 48.3 cm rack installation 2 U |
| Dimensions: |
Width: 48,3 cm
Depth: 40,8 cm
Height: 8,8 cm |
| Weight: |
7,60 kg |
| Operating system: |
Win XP, Win Vista, Win 7, Win 10, OS X 10,5 or better |
| Item information |
Value |
| Shipping weight: |
11,60 kg
|
| Item weight: |
8,95 kg
|
| Dimensions
( Length × Width × Height ):
|
14,00 × 55,00 × 52,00 cm |
