<p class="featureSatz">4-channel UHF PLL microphone system</p><ul><li, 317,90 €

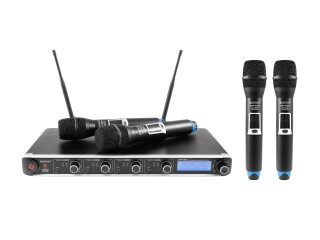

OMNITRONIC UHF-304 4-Channel Wireless Mic System 823-832/863-865MHz

Item number: 13063304

4-channel UHF PLL microphone system

  • 4-channel multifrequency receiver unit and 2 hand-held microphones with UHF PLL technology
  • 93 preset channels in 10 channel groups
  • Easy and error-free synchronization between receiver and transmitters via infrared signal
  • LCDs for group, frequency and channel
  • LEDs for carrier and audio signal
  • 4 separate channels with volume controls
  • Balanced XLR output per channel
  • Unbalanced 6.3 mm jack for mixed signal output
  • Jack cable included
  • Removable antennas (BNC connection)
  • Incl. mounting brackets for 483 mm rack installation
  • 4 dynamic microphones with cardioid polar pattern and LCD for battery capacity and frequency
  • Matching pocket transmitter can be ordered separately
  • License-free and approved in large parts of the EU (please check on a country-by-country basis)

Receiver

  • Housing design: (19") 48.3 cm rack installation possible 1 U

Microphone

  • Polar pattern: Cardioid
  • Battery: 2 xMignon (AA) (not included)

Category: Drahtlos-Mikrofonanlagen


317,90 €

including 20% VAT. , plus shipping (Standard)

Old price: 343,91 €
Available now!

Shipping time: 4 - 8 workdays






4-channel UHF PLL microphone system

  • 4-channel multifrequency receiver unit and 2 hand-held microphones with UHF PLL technology
  • 93 preset channels in 10 channel groups
  • Easy and error-free synchronization between receiver and transmitters via infrared signal
  • LCDs for group, frequency and channel
  • LEDs for carrier and audio signal
  • 4 separate channels with volume controls
  • Balanced XLR output per channel
  • Unbalanced 6.3 mm jack for mixed signal output
  • Jack cable included
  • Removable antennas (BNC connection)
  • Incl. mounting brackets for 483 mm rack installation
  • 4 dynamic microphones with cardioid polar pattern and LCD for battery capacity and frequency
  • Matching pocket transmitter can be ordered separately
  • License-free and approved in large parts of the EU (please check on a country-by-country basis)

Receiver

  • Housing design: (19") 48.3 cm rack installation possible 1 U

Microphone

  • Polar pattern: Cardioid
  • Battery: 2 xMignon (AA) (not included)


Type: Wireless set
Frequency band: UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency range: 50 - 18,000 Hz
S/N ratio: >80 dB
Number of channels: 4
Range: 60 m
Weight: 3,00 kg
Receiver
Power supply: 100-240 V AC, 50/60 Hz
12 V DC 500 mA
Power consumption: 6 W
Power connection: Mains input Coaxial power connector (M) via Power supply cord with AC adapter (provided)
Material: Metal
Housing design: (19") 48.3 cm rack installation possible 1 U
Width: 41 cm
Height: 4,7 cm
Depth: 23,5 cm
Microphone
Power supply: 3 V DC
Power connection: Battery/battery pack
Polar pattern: Cardioid
Battery: 2 xMignon (AA) (not included)
Capsule type: Dynamic
Material: Plastic
Length: 25 cm
Diameter: 5,1 cm
Weight: 0,23 kg
System: Non-diversity, 4 channels
Receiving frequencies: 93
RF power output: 10 mW
Modulation method: FM
Frequency stability: 10 ppm
Sensitivity: 6 dBµV
T.H.D.:
Audio outputs:
Mic: 4 x XLR, bal.
Mix: 6.3 mm jack, unbal.

Shipping weight: 38,00 Kg
Product weight: 3,80 Kg
