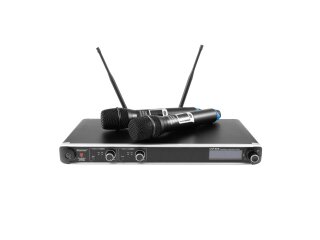

2-channel UHF PLL microphone system
- 2-channel multifrequency receiver unit and 2 hand-held microphones with UHF PLL technology
- 93 preset channels in 10 channel groups
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- LEDs for carrier and audio signal
- 2 separate channels with volume controls
- Balanced XLR output per channel
- Detachable BNC antennas
- 2 dynamic microphones with cardioid polar pattern and LCD for battery capacity and frequency
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 863 - 865 MHz License-free and approved in Europe
- Operating range up to 60m with line-of-sight
- For application areas such as: Clubs/dancing school; wedding/gala/events; mobile use; mobile djs / entertainer; restaurants, bars and hotels
receiver
- LCD display
- Desktop console housing
- (19") 48.3 cm rack installation possible 1 U
microphone
- Polar pattern: Cardioid
- LCD display
- Charge status indicator
Package contents
- 1 x receiver, 2 x antenna, 1 x external mains adapter, 2 x microphone, 1 x jack cable, 2 x holder, 2 x mounting bracket, 4 x screw, 1 x user manual, 1 x declaration of conformity
| Type: |
Wireless set |
| IP classification: |
IP20 |
| Range: |
Range up to 60m with line-of-sight |
| Frequency band: |
UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Frequency stability: |
± |
| Modulation: |
FM; PLL technology |
| Frequency selection: |
93 switchable frequencies |
| Weight: |
2,30 kg |
| Receiver |
| Power supply: |
100-240 V AC, 50/60 Hz
14V DC 350 mA |
| Power consumption: |
4 W |
| Power connection: |
Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Number of channels: |
2 |
| Frequency range: |
50 - 18,000 Hz |
| S/N ratio: |
>80 dB |
| THD: |
<0,5 % at 1 kHz |
| Display type: |
LCD display |
| Display: |
Channel , frequency , goup |
| Control elements: |
Power switch, level control, encoder |
| Connections: |
Input: antenna via 2 x BNC (F)
Output: line via 1 x 6.3 mm plug (unbal.)
Output: microphone via 2 x 3-pin XLR |
| Material: |
Metal |
| Housing design: |
Desktop console housing
(19") 48.3 cm rack installation possible 1 U |
| Dimensions: |
Width: 41 cm
Depth: 23,5 cm
Height: 4,7 cm |
| Microphone |
| Type: |
Hand-held transmitter |
| Power supply: |
3V DC |
| Power connection: |
Battery/battery pack |
| Capsule type: |
Dynamic |
| Polar pattern: |
Cardioid |
| Battery: |
2 x Mignon (AA) (not included) |
| RF power output: |
10 mW |
| Display type: |
LCD display |
| Display: |
Frequency , charge status indicator |
| Switch: |
On/off switch |
| Material: |
Plastic |
| Dimensions: |
Length: 25 cm
Diameter: Ø 5,2 cm |
| Weight: |
0,23 kg |
| Item information |
Value |
| Shipping weight: |
3,80 kg
|
| Item weight: |
2,90 kg
|
| Dimensions
( Length × Width × Height ):
|
7,00 × 51,00 × 38,00 cm |
