| Weight: |
41,70 kg |

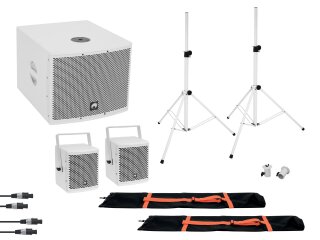

| OMNITRONIC MOLLY-12A Subwoofer active white |
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
1000 W |
| Output power: |
1 x 500 W RMS
2 x 100 W RMS (8 ohms)
2 x 200 W RMS (4 ohms) |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: |
40 - 160 Hz |
| Sensitivity: |
103 dB |
| Max. SPL: |
128 dB |
| DSP: |
Digital signal processor |
| DSP presets: |
FLAT; DJ; LIVE; VOICE |
| Control: |
Bluetooth |
| Attachment system: |
Flange: M20 thread |
| Circuitry: |
Class D |
| Control elements: |
Phase reversal switch |
| Controls: |
Limiter |
| Status LED: |
Signal, power, limit, fault, DSP presets |
| Connections: |
Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 1 x 3.5 mm jack (stereo) mounting version
Input: line via 1 x stereo RCA
Output: line via 2 x 3-pin XLR
Output: Top via 2 x speaker built-in socket (F) |
| Input channels: |
1 x stereo via Combination socket or RCA or Bluetooth, channel control via Rotary dial |
| Speaker: |
1 x woofer 12"
Voice coil lows 3" |
| Type of speaker: |
Subwoofer |
| Type of construction: |
Vented |
| Carrying handle: |
2 pc/pcs |
| Material: |
Birch multiplex |
| Color: |
White, textured coating, painted |
| Dimensions: |
Width: 47 cm
Depth: 57 cm
Height: 40 cm |
| Weight: |
22,10 kg |
| OMNITRONIC MOLLY-6 Top white 2x |
| Power: |
Program: 260W
Rated: 130W RMS |
| Frequency range: |
150 - 20000 Hz |
| Sensitivity: |
95 dB (1W/1m) |
| Max. SPL: |
119 dB |
| Impedance: |
8 ohms |
| Attachment system: |
2x Mounting bracket |
| Flying points: |
2 x M8 thread |
| Connections: |
1 x speaker built-in socket (F)
1 x screw plug-in terminal |
| Speaker: |
1 x woofer 6,5"
Basket material: Steel
Voice coil lows 1"
1 x Tweeter 1" |
| Type of speaker: |
On-ceiling/on-wall speaker; Coaxial speaker |
| Material: |
MDF (Medium-density fiberboard) |
| Color: |
White, textured coating, painted |
| Dimensions: |
Width: 18,3 cm
Depth: 21,4 cm
Height: 23 cm |
| Weight: |
8,90 kg |
| OMNITRONIC BOB-4 Stand Adaptor white 2x |
| Maximum carrying capacity: |
30 kg |
| Type (general stands): |
Accessory |
| Material: |
Metal |
| Color: |
White |
| Weight: |
380 g |
| OMNITRONIC BS-2 EU Loudspeaker Stand white |
| Maximum carrying capacity: |
50 kg |
| Height: |
Maximum: 205 cm
Minimum: 117 cm |
| Attachment system: |
Ø 35mm |
| Type (general stands): |
Speaker stand/manual |
| Material: |
Steel |
| Color: |
White, painted; , scratchproof and shockproof |
| Transport dimensions: |
1,1 m x 17 cm x 14 cm |
| Weight: |
4,50 kg |
| OMNITRONIC Carrying Bag for Speaker Stands BS-2 |
| Type (general stands): |
Accessory |
| Dimensions: |
Length: 1,1 m
Diameter: Ø 14,50 cm |
| Weight: |
290 g |
| OMNITRONIC Speaker cable Speaker 2x1.5 5m bk |
| Cable construction: |
2 x 1,5 mm² speaker cable |
| Cable length: |
5 m |
| Plug A: |
1 x 2-pin speaker (M) |
| Plug B: |
1 x 2-pin speaker (M) |
| Color: |
Black |
| Weight: |
370 g |
