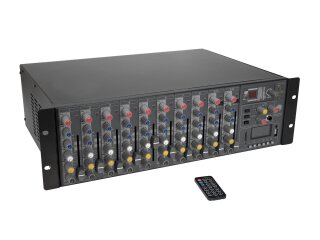

19" powered mixer, 2 x 400 W, with 12 channels, DSP FX unit and MP3 player
- Audio mixer and digital amplifier in a 19" housing
- Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
- 6 mono input channels with gain control, 2-way EQ, pan control and channel fader
- 2 stereo input channels with 2-way EQ, balance control and channel fader
- 8 channel inserts
- Tape input and output
- Separate main mix and control room outputs
- 2 AUX send outputs
- Adjustable headphones output
- +48 V phantom power, can be switched centrally
- 4-digit stereo LED level display
- Digital signal processor 24 bit with 16 effects
- Control via IR remote control; Bluetooth
- (19") 48.3 cm rack installation 3 U
- For application areas such as: Clubs/dancing school; stage; theater; concerts/FoH's; rental
Package contents
- 1 x remote control, 1 x battery, 1 x user manual, 1 x power cord, 1 x mixer, 1 x declaration of conformity
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
115 W 1/8 power |
| Protection class: |
Protection class I |
| Output power: |
2 x 250 W RMS (8 ohms)
2 x 400 W RMS (4 ohms) |
| Power connection: |
Power supply cord with safety plug (provided) |
| Battery: |
1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Frequency range: |
20 - 20000 Hz |
| S/N ratio: |
>89 dB |
| THD: |
<0,05 % at 1 kHz |
| DSP: |
Digital signal processor 24 bit with 16 effects |
| Phantom power: |
Or 48 V DC |
| Control: |
IR remote control; Bluetooth |
| Bluetooth device name: |
Bluetooth |
| Audio player: |
USB + SD + Bluetooth |
| Control elements: |
Level control per channel, Master control, tone control, phantom power switch |
| Connections: |
Input: microphone via 8 x 3-pin XLR
Input: line via 12 x 6.3 mm jack socket (stereo) mounting version
Input: line via 1 x stereo RCA
Input: AUX via 2 x 6.3 mm jack socket (stereo) mounting version
Output: AUX via 2 x 6.3 mm jack socket (stereo) mounting version
Output: rec. via 1 x stereo RCA
Output: master via 2 x 3-pin XLR
Output: speaker via 2 x speaker built-in socket (F) |
| Channels: |
Input chanel: 2 x stereo via jack, 2-band tone control EQ, gain control, panoramacontol |
| Input channels: |
8 x mono via XLR or jack |
| Equalizer: |
Channel: 8 x 2-band tone control mono |
| Available storage media: |
USB devices/SD cards |
| USB port: |
Type A |
| Color: |
Black |
| Housing design: |
(19") 48.3 cm rack installation 3 U |
| Dimensions: |
Width: 48,3 cm
Depth: 34 cm
Height: 13,35 cm |
| Weight: |
6,55 kg |
| Item information |
Value |
| Shipping weight: |
10,50 kg
|
| Item weight: |
8,05 kg
|
| Dimensions
( Length × Width × Height ):
|
23,00 × 53,00 × 42,00 cm |
