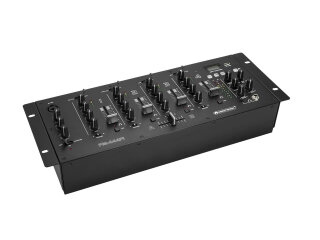

4-channel DJ mixer with Bluetooth, MP3 player and USB interface
- 4 input channels with gain control, LED level meter, 3-band equalizer, cue button and channel fader
- 1 DJ microphone channel with level control, 2-band equalizer, on/off and talkover switch
- Built-in USB audio interface allows playback of digital audio files from a computer (PC and Mac)
- Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function
- Crossfader with assignment switches
- Master channel with level and balance control
- 10-digit stereo LED level meter
- Adjustable monitor output
- 7 line and 2 phono inputs via RCA jacks
- Balanced XLR and RCA outputs
- Additional recording output
- LCD display
- The device can be connected via USB to the PC
- (19") 48.3 cm rack installation 4 U
- Control via Bluetooth
- For application areas such as: Clubs/dancing school; installation; mobile djs / entertainer; restaurants, bars and hotels
Package contents
- 1 x user manual, 1 x power cord, 1 x mixer, 1 x RCA cable, 1 x USB cable
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
Max. 10 W |
| Protection class: |
Protection class II |
| Power connection: |
Mains input via C8 (M) "figure 8" mounting version power supply cord with Euro plug (provided) |
| Frequency range: |
20 - 20000 Hz |
| S/N ratio: |
>60 dB |
| Impedance: |
Input: microphone 1 kOhm
Input: line 1 kOhm
Input: phono 1 kOhm |
| Gain: |
Input: variable |
| Control: |
Bluetooth |
| Bluetooth: |
Version: 4,2 + EDR
Profiles: A2DP, AVRCP |
| Bluetooth device name: |
PM-444Pi |
| Housing color: |
Black |
| Display type: |
LCD display |
| Control elements: |
Crossfader selector switch, crossfader, source selector, power switch |
| Status LED: |
Power, CUE, master level meter, chanal level meter |
| Connections: |
Input: microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 5 x stereo RCA
Input: phono via 2 x stereo RCA
Output: master via 2 x 3-pin XLR
Output: master via 1 x stereo RCA
Output: rec. via 1 x stereo RCA
Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version |
| Channels: |
Input chanel: 2 x stereo with line-phono switch via RCA, channel control via fader, 3-band tone control EQ -30dB to12dB at 80Hz/12kHz, gain control, CUE switch, crossfader selector switch, source selector
Input chanel: 1 x stereo with line-line switch via RCA, channel control via fader, 3-band tone control EQ -30dB to12dB at 80Hz/12kHz, gain control, CUE switch
Input chanel: 1 x stereo with line-USB switch via RCA or USB, channel control via fader, 3-band tone control EQ -30dB to12dB at 80Hz/12kHz, gain control
Microphon chanal: 1 x mono via Combination socket (XLR/jack), channel control via rotary dial, 2-band tone control EQ -30dB to12dB at 70Hz/13kHz
Master output: 1 x stereo via XLR or RCA, channel control via rotary dial
Headphones output: stereo via jack, channel control via rotary dial |
| Music format: |
MP3, WAV; WAV |
| USB port: |
USB 2.0, type B
Type A |
| PC connect: |
Via USB |
| Housing design: |
(19") 48.3 cm rack installation 4 U |
| Dimensions: |
Width: 48,3 cm
Depth: 17,8 cm
Height: 8,9 cm |
| Weight: |
3,50 kg |
| Audio player |
| Available storage media: |
USB devices max. 32GB (FAT 32) |
| Item information |
Value |
| Shipping weight: |
5,10 kg
|
| Item weight: |
3,95 kg
|
| Dimensions
( Length × Width × Height ):
|
14,00 × 495,00 × 22,00 cm |
