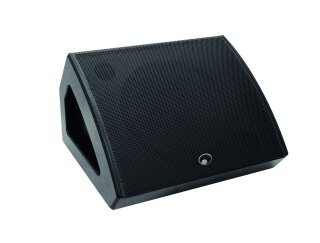

Monitor, 15" woofer, 1,35" driver, 250 W RMS LF, 50 W RMS HF
- Active 2-way coaxial stage monitor for live and playback applications
- Class D/AB biamp power amplifier
- 38 cm bass speaker (15") and 3.5 cm compression driver (1.35")
- Bassreflex cabinet provides deep bass and high SPL
- Low cut, volume control
- Black metal grille
- Application possibility: Standing; monitoring; on stand
- For application areas such as: Band/rehearsal room; mobile use; stage
Package contents
- 1 x compact cabinet speaker, 1 x user manual, 1 x power cord
| Power supply: |
115/230 V AC, 50/60 Hz |
| Power consumption: |
300 W 1/8 power |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Device fuse: |
5 x 20 mm, T 2 A fuse replaceable |
| Power: |
Program: 500W
Rated: 50W RMS HF
Rated: 250W RMS LF |
| Frequency range: |
45 - 20000 Hz |
| Max. SPL: |
124 dB |
| Dispersion angle: |
60° x 60° |
| Attachment system: |
Flange: Ø 35mm |
| Control elements: |
Power switch, level control, tone control, groundlift selector |
| Controls: |
Overload; limiter |
| Status LED: |
Power, limit |
| Connections: |
Input: line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: line via 1 x 3-pin XLR |
| Input channels: |
1 x mono via XLR or jack, channel control via rotary dial |
| Speaker: |
1 x woofer 15" with ferrit magnet
Basket material: steel
Conematerial: cardboard/paper
1 x voice coil compression tweeter highs 1,35" |
| Type of speaker: |
Compact cabinet speaker; coaxial speaker; stage monitor |
| Material: |
MDF (medium density fiberboard), 15 mm |
| Color: |
Black, textured coating, painted |
| Dimensions: |
Width: 60 cm
Depth: 37 cm
Height: 54 cm |
| Weight: |
22,90 kg |
| Item information |
Value |
| Shipping weight: |
32,80 kg
|
| Item weight: |
25,20 kg
|
| Dimensions
( Length × Width × Height ):
|
67,00 × 57,00 × 49,00 cm |
