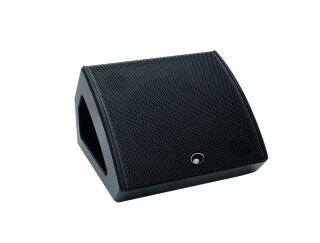

Monitor, 12" woofer, 1,35" driver, 250 W RMS LF, 50 W RMS HF
- Active 2-way coaxial stage monitor for live and playback applications
- Class D/AB biamp power amplifier
- 30 cm bass speaker (12") and 3.5 cm compression driver (1.35")
- Bassreflex cabinet provides deep bass and high SPL
- Line input (XLR/6.3 mm jack)
- Low cut, volume control
- Black metal grille
- For application areas such as: Stage; mobile use; band/rehearsal room
- 2 recessed carrying handles
- Application possibility: Monitoring; on stand; standing
Package contents
- 1 x compact cabinet speaker, 1 x user manual, 1 x power cord
| Power supply: |
115/230 V AC, 50/60 Hz |
| Power consumption: |
180 W 1/8 power |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Device fuse: |
5 x 20 mm, T 2 A fuse replaceable |
| Power: |
Program: 500W
Rated: 50W RMS HF
Rated: 250W RMS LF |
| Frequency range: |
50 - 20000 Hz |
| Max. SPL: |
123 dB |
| Dispersion angle: |
80° x 80° |
| Attachment system: |
Flange: |
| Control elements: |
Level control, groundlift selector, tone control, power switch |
| Controls: |
Limiter; overload |
| Status LED: |
Power, limit |
| Connections: |
Input: line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: line via 1 x 3-pin XLR |
| Input channels: |
1 x mono via XLR or jack, channel control via rotary dial |
| Speaker: |
1 x woofer 12" with ferrit magnet
Basket material: steel
Conematerial: cardboard/paper
1 x voice coil compression tweeter highs 1,35" |
| Type of speaker: |
Compact cabinet speaker; coaxial speaker; stage monitor |
| Type of construction: |
Vented |
| Recessed carrying handle: |
2 pc/pcs |
| Material: |
MDF (medium density fiberboard) |
| Color: |
Black, textured coating, painted |
| Dimensions: |
Width: 50 cm
Depth: 34 cm
Height: 46 cm |
| Weight: |
16,70 kg |
| Item information |
Value |
| Shipping weight: |
24,30 kg
|
| Item weight: |
18,70 kg
|
| Dimensions
( Length × Width × Height ):
|
57,00 × 52,00 × 45,00 cm |
