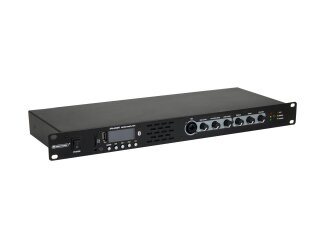

The 1 U flat stereo mixing amplifier EPA-100BT with efficient class D output circuitry is particularly suitable for permanent installations in restaurants, gyms and retail locations which require quick-access music playback control. It provides 2 x 50 watts at 4 ohms and lets you play and control music from multiple sources. Equipped with connections for a microphone and a line-level audio source, it also features a built-in audio player with USB port and memory card slot as well as a Bluetooth receiver for wireless audio streaming directly from your smartphone, tablet or any other Bluetooth-enabled device.
19" mixing amplifier with audio player, Bluetooth and 2 x 50 W power
- Built-in audio player with USB port and SD card slot
- Adjustable stereo line input via XLR and RCA jacks
- Adjustable microphone input on the front panel
- Controls for volume, bass and treble
- Stereo line output via XLR and RCA jacks
- Screw terminals for low-impedance speakers
- Efficient Class D technology
- Extremely low weight and height due to integrated switch mode power supply
- The device is cooled by cooling fan
- Monochrome LCD display
- (19") 48.3 cm rack installation possible 1 U
- For application areas such as: Trade fair and shop fitting; sports centres/gyms; restaurants, bars and hotels
audio player
- Bluetooth: operating range up to 10m
- Control via Bluetooth
Package contents
- 1 x amplifier, 1 x power cord, 1 x user manual, 1 x declaration of conformity
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
100 W |
| Output power: |
30 W RMS (8 ohms)
50 W RMS (4 ohms) |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: |
20 - 20000 Hz |
| Cooling: |
Cooling fan |
| Circuitry: |
Class D |
| Display type: |
Monochrome LCD display |
| Control elements: |
Groundlift selector |
| Controls: |
Limiter |
| Status LED: |
Power, signal, clip |
| Connections: |
Input: microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 2 x 3-pin XLR
Input: line via 1 x stereo RCA
Output: line via 2 x 3-pin XLR
Output: line via 1 x stereo RCA
Output: speaker via screw terminal |
| Equalizer: |
Master: 1 x 2-band tone control stereo |
| Housing design: |
(19") 48.3 cm rack installation possible 1 U |
| Dimensions: |
Width: 48,3 cm
Depth: 21 cm
Height: 4,45 cm |
| Weight: |
2,59 kg |
| Audio player |
| Control: |
Bluetooth |
| Audio player: |
USB + SD + Bluetooth |
| Range: |
Bluetooth: range up to 10m |
| Carrier frequency: |
2,4 GHz |
| Music format: |
WMA; MP3, WAV |
| Available storage media: |
USB devices/SD cards max. 32GB |
| Item information |
Value |
| Shipping weight: |
3,80 kg
|
| Item weight: |
2,90 kg
|
| Dimensions
( Length × Width × Height ):
|
75,00 × 53,00 × 27,00 cm |
