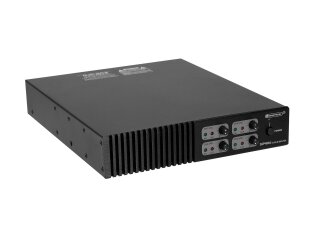

4-channel class D amplifier in 9.5" housing, 4 x 150 W / 4 ohms, 4 x 80 W / 8 ohms
- Extremely low weight and height due to integrated switch mode power supply
- Level control per channel
- Inputs linkable for flexible configuration
- Rugged steel chassis with aluminum front panel
- Desktop console housing
- (19") 48.3 cm rack installation possible
- For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
Package contents
- 1 x user manual, 1 x amplifier, 4 x foot, 6 x angle, 8 x screw, 1 x power cord
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
185 W 1/8 power |
| Output power: |
4 x 150 W RMS (4 ohms)
4 x 80 W RMS (8 ohms) |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: |
20 - 20,000 Hz |
| S/N ratio: |
>105 dB |
| Impedance: |
Input: 20 kOhm , bal.
Input: 10 kOhm , unbal. |
| Housing color: |
Black |
| Circuitry: |
Class D |
| Slew rate: |
20 V/µs |
| Damping factor: |
>300 |
| Control elements: |
Power switch, level control per channel |
| Controls: |
Softstart; short-circuit; overheat; overload; VHF; DC voltage |
| Status LED: |
Power, signal, clip |
| Connections: |
Input: line via 4 x screw plug-in terminal
Output: speaker via 4 x screw plug-in terminal |
| Material: |
Metal |
| Housing design: |
Desktop console housing
(19") 48.3 cm rack installation possible |
| Dimensions: |
Width: 21,4 cm
Depth: 26,5 cm
Height: 4,4 cm |
| Weight: |
2,46 kg |
| Item information |
Value |
| Shipping weight: |
3,70 kg
|
| Item weight: |
2,84 kg
|
| Dimensions
( Length × Width × Height ):
|
8,00 × 335,00 × 29,00 cm |
