FUTURELIGHT DMH-160 MK2 LED Moving-Head - style4store professional sh, 1.428,90 €

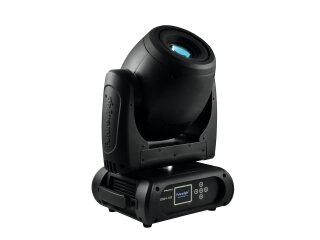

FUTURELIGHT DMH-160 MK2 LED Moving Head

Item number: 51841972

PRO Moving Head with a 200 W COB LED and extensive features

  • Powerful white 200 W COB LED
  • Variable PWM frequency (pulse-width modulation)
  • Upgrade via optional wireless receiver module for WDMX operation (Wireless Solution - made in Sweden)
  • Supports RDM (Remote Device Management)
  • 14, 16, 23 or 25 DMX channels selectable
  • Effect wheel with rotating 3-facet prism and 8-facet prism and frost filter
  • Color wheel with 8 different dichroic color filters plus white
  • Rainbow effect with adjustable speed in both directions
  • Gobo wheel with 7 rotating gobos plus open
  • All gobos can be interchanged
  • Slot-in gobo system for exchanging gobos without tools
  • With gobo shake function
  • Gobo wheel 2 with 7 static gobos plus open
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • Motorized focus
  • Autofocus
  • Steplessly adjustable iris
  • Dimmer with 16 bit resolution
  • Strobe effect with adjustable speed
  • Random strobe effect
  • Automatic position correction
  • PAN angle switchable between 540° and 630°
  • Sound-controlled via built-in microphone
  • Control board with graphic LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • The scenes can be modified via the Control Board or via an external controller and loaded into the memory
  • Number of scenes can be changed individually
  • Software upload by optional accessories via DMX link
  • Power connection via Neutrik PowerCon jack and included power cable
  • Feed-through output allows to power up to 8 devices
  • ESDC function (Easy Service Data Check) with battery-buffered control board for operation time readouts etc. (the Li-Ion battery 3.7V, AAA, 10440 is not included)
  • DMX control via any standard DMX controller
  • Color generation: CW; Color wheel 1x 8 dichroic filters plus open
  • Control: W-DMX by wireless solution (optional); Stand-alone; RDM; DMX
  • Projection: flicker-free
  • Effect: Gobo effect; Single Beam

Category: LED Effekte High Power


1.428,90 €

including 20% VAT. , plus shipping (Standard)

Old price: 1.545,81 €
Available now!

Shipping time: 4 - 8 workdays






PRO Moving Head with a 200 W COB LED and extensive features

  • Powerful white 200 W COB LED
  • Variable PWM frequency (pulse-width modulation)
  • Upgrade via optional wireless receiver module for WDMX operation (Wireless Solution - made in Sweden)
  • Supports RDM (Remote Device Management)
  • 14, 16, 23 or 25 DMX channels selectable
  • Effect wheel with rotating 3-facet prism and 8-facet prism and frost filter
  • Color wheel with 8 different dichroic color filters plus white
  • Rainbow effect with adjustable speed in both directions
  • Gobo wheel with 7 rotating gobos plus open
  • All gobos can be interchanged
  • Slot-in gobo system for exchanging gobos without tools
  • With gobo shake function
  • Gobo wheel 2 with 7 static gobos plus open
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • Motorized focus
  • Autofocus
  • Steplessly adjustable iris
  • Dimmer with 16 bit resolution
  • Strobe effect with adjustable speed
  • Random strobe effect
  • Automatic position correction
  • PAN angle switchable between 540° and 630°
  • Sound-controlled via built-in microphone
  • Control board with graphic LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • The scenes can be modified via the Control Board or via an external controller and loaded into the memory
  • Number of scenes can be changed individually
  • Software upload by optional accessories via DMX link
  • Power connection via Neutrik PowerCon jack and included power cable
  • Feed-through output allows to power up to 8 devices
  • ESDC function (Easy Service Data Check) with battery-buffered control board for operation time readouts etc. (the Li-Ion battery 3.7V, AAA, 10440 is not included)
  • DMX control via any standard DMX controller
  • Color generation: CW; Color wheel 1x 8 dichroic filters plus open
  • Control: W-DMX by wireless solution (optional); Stand-alone; RDM; DMX
  • Projection: flicker-free
  • Effect: Gobo effect; Single Beam


Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 285 W
IP classification: IP20
Power connection: Mains input Powercon (blue), mounting version via Power supply cord with safety plug (provided)
Power output: 1 x Powercon (gray), mounting version
Fuse: 5 x 20 mmT time-lag, 3,15 A
LED: 1 x COB (chip-on-board) 200 W Color wheel
Beam angle: 11°
Max. TILT movement: 270°
Max. PAN movement: 630°
Equipment: Iris; rotating gobo wheel; static gobo wheel; Prisma 3-fold; Prisma 8-fold; Focus motor-driven; Frost filter; Color wheel
Color generation: CW; Color wheel 1x 8 dichroic filters plus open
Gobos: static gobo wheel with 7 gobos and open
Shake effect
rotating gobo wheel with 7 gobos and open
outside diameter 27mm
image diameter 22mm
Gobos changeable
Shake effect
DMX channels: 14; 16; 23; 25
DMX input: 1 x 5-pin XLR (M) mounting version
1 x 3-pin XLR (M) mounting version
DMX output: 1 x 5-pin XLR (F) mounting version
1 x 3-pin XLR (F) mounting version
Cooling fan: Yes, temperature-controlled
Control: W-DMX by wireless solution (optional)
Stand-alone
RDM
DMX
Case color: Black
Width: 34,3 cm
Height: 44,1 cm
Depth: 26,2 cm
Weight: 15,85 kg
Legal specifications
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting

Shipping weight: 179,00 Kg
Product weight: 17,90 Kg
