LED Moving Head spot with color wheel, static & rot. gobo wheel, prism, frost, focus and zoom
Weight: |
48,10 kg |

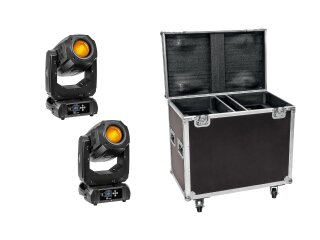

EUROLITE LED TMH-S200 Moving Head Spot |
Power supply: |
100-240 V AC, 50/60 Hz |
Power consumption: |
250 W |
IP classification: |
IP20 |
Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
Power output: |
P-Con (gray), mounting version |
Device fuse: |
5 x 20 mm, T 3,15 A Fuse replaceable |
Lamp type: |
LED lamp |
LED: |
1 x 200 W COB (chip-on-board) cold white (CW) |
Max. TILT movement: |
270° Exact positioning (16 bit resolution) Auto position correction (feedback) |
Max. PAN movement: |
540° Exact positioning (16 bit resolution) Auto position correction (feedback) |
Flash rate: |
1 - 18 Hz |
Equipment: |
Prism 3-fold rotating; frost filter; gobo wheel with rotating gobos; gobo wheel with static gobos; Zoom motor-driven; Focus motor-driven; color wheel |
Color generation: |
Color wheel with 9 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions |
Gobos: |
Gobo wheel with static gobos, 9 gobos and open Shake effect Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 19mm Image diameter 15mm Shake effect Slot-in gobo system for easy gobo replacement Gobos changeable |
DMX channels: |
17 |
DMX input: |
3-pin XLR (M) mounting version |
DMX output: |
3-pin XLR (F) mounting version |
Cooling: |
Cooling fan |
Control: |
Stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
Preprogrammed in: |
Light Captain |
Projection: |
Flicker-free |
Beam angle: |
8° - 22° |
Beam angle (1/2 peak): |
8 - 22° |
Beam angle (1/10 peak): |
8 - 22° |
Illuminance in Lux (lx): |
Narrow cold white (CW) 3m: 22622 lx, 6m: 6278 lx Wide cold white (CW) 1m: 31619 lx, 3m: 4309 lx, 6m: 1112 lx |
Housing color: |
Black |
Display type: |
Multicolor LCD display |
Dimensions: |
Width: 30,5 cm Depth: 33,0 cm Height: 51,5 cm |
Weight: |
14,70 kg |
Noise classification: |
Class 3 (clearly perceptible sounds) |
Legal specifications |
Special product: |
Not designed for household room illumination |
Intended use: |
Show effect lighting |
ROADINGER Flightcase 2x TMH-S200 with wheels |
Maximum load: |
50 kg |
Aluminum profile frames: |
30 mm |
Case handle: |
2 pc/pcs |
Stop hinge: |
2 pc/pcs |
Lock: |
Butterfly lock: 2 pc/pcs |
Transport aid: |
4 x castors with 2 locking brakes |
Material: |
Plywood multi-layer glued, 7 mm |
Color: |
Black, laminated |
Device compartment: |
25,5 cm x 32 cm x 50 cm |
Inside dimensions: |
63 cm x 32 cm x 50 cm |
Accessory compartment: |
6,5 cm x 32 cm x 19 cm |
Dimensions: |
Width: 67,5 cm Depth: 37 cm Height: 70,5 cm |
Weight: |
18,70 kg |
