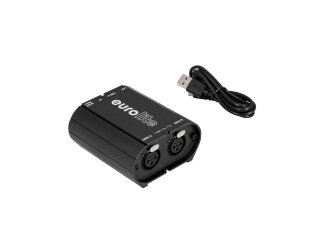

DMX/Art-Net interface via USB and Ethernet LAN with software bundle, 1024 channels
- DMX Control (show lighting)
- LED PC Control (architectural lighting)
- Pixel Control (pixel mapping and video mixing)
- Can transmit up to 1024 DMX channels
- 64 Art-Net universes with 512 channels each on Ethernet
- Control via DMX; Art-Net; Wi-light 2 App; RDM; sACN; master/slave function
- Push-button to select the next scene
- In connection with Pro DMX 2
- In connection with LED PC-Control 512
firmware can be updated
- Compatible with Win 7, Win 10, Linux, OS X 10,13 or better
- For application areas such as: Clubs/dancing school; wedding/gala/events; stage; mobile djs / entertainer
Package contents
- 1 x device, 1 x USB cable
| Power supply: |
5V DC 200 mA |
| IP classification: |
IP20 |
| Protection class: |
Protection class III |
| Power connection: |
Mains input via USB C (W) mounting version |
| DMX channels: |
Output 1024 |
| DMX output: |
2 x 3-pin XLR (F) mounting version |
| Network connection: |
Protocol: Ethernet TCP/IP via RJ-45 (F) mounting version |
| Control: |
DMX; Art-Net; Wi-light 2 App; RDM; sACN; master/slave function |
| USB port: |
Type C |
| Material: |
Aluminum |
| Color: |
Anthracite |
| PC connect: |
Pro DMX 2
LED PC-Control 512, firmware can be updated |
| Dimensions: |
Length: 8,7 cm
Width: 8,0 cm
Height: 4,4 cm |
| Weight: |
0,22 kg |
| Operating system: |
Win 7, Win 10, Linux, OS X 10,13 or better |
| Item information |
Value |
| Shipping weight: |
0,40 kg
|
| Item weight: |
0,30 kg
|
| Dimensions
( Length × Width × Height ):
|
55,00 × 20,00 × 14,00 cm |
