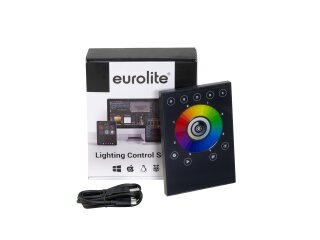

DMX wall controller with multi-function touchpad and software, 512 channels
- Flat, wall-mounted stand-alone player for DMX control of light effects without the need for a computer
- Write a show in to the stand-alone memory of the player and play back sequences without a computer
- Programmable 40 scenes/chases
- Can transmit up to 512 DMX channels
- Real-time clock triggering for each scene (day, week, month, year)
- Control via DMX; master/slave function; sound to light; Wi-light 2 App
- Automatic Scene Recovery if the power is accidently cut off
- Applicable for serial connection of 32 players in Master/Slave mode
- Flush mounting
- Compatible with Win 7, Win 10, Linux, OS X 10,13 or better
- In connection with Pro DMX 2
firmware can be updated
- For application areas such as: Restaurants, bars and hotels; Trade fair and shop fitting; installation
Package contents
- 1 x device, 1 x USB cable, 1 x screw plug-in terminal
| Power supply: |
9-24V DC 100 mA |
| IP classification: |
IP20 |
| Protection class: |
Protection class III |
| Power connection: |
Via screw terminal |
| Programs: |
Programmable 40 scenes/chases |
| DMX channels: |
Output 512 |
| Control: |
DMX; master/slave function; sound to light; Wi-light 2 App |
| Connections: |
Output: screw plug-in terminal
RJ-45 (F) mounting version |
| Available storage media: |
MicroSD card |
| USB port: |
Type C |
| Material: |
Glass; plastic |
| Color: |
Black |
| PC connect: |
Pro DMX 2, firmware can be updated |
| Housing design: |
Flush mounting |
| Dimensions: |
Width: 9,8 cm
Depth: 1,3 cm
Height: 14,4 cm |
| Weight: |
0,23 kg |
| Operating system: |
Win 7, Win 10, Linux, OS X 10,13 or better |
| Item information |
Value |
| Shipping weight: |
0,40 kg
|
| Item weight: |
0,29 kg
|
| Dimensions
( Length × Width × Height ):
|
45,00 × 175,00 × 145,00 cm |
