One DMX-line is partitioned into six lines with this splitter. Due to the fact, that all outputs are seperated galvanically, one broken line will not cause a blackout. When a lighting performance without any disturbance is aspired, then this DMX Split is a must-have.

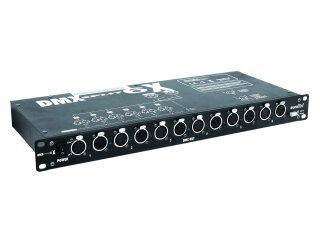

Splitter with 6 galvanically isolated outputs, 3-pin & 5-pin XLR sockets
- DMX splitter for splitting one DMX input signal to 6 DMX outputs
- Input and outputs galvanically isolated
- Input and outputs with a set of respective power supply and internal fuse
- Each DMX output with independent driver and status indicator
- (19") 48.3 cm rack installation 1 U
Package contents
- 1 x device, 1 x user manual
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
35 W |
| Power connection: |
Fixed power supply cord with safety plug |
| DMX input: |
1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version |
| DMX output: |
6 x 3-pin XLR (F) mounting version separate (galvanic) with independent driver and status indicator
6 x 5-pin XLR (F) mounting version separate (galvanic) with independent driver and status indicator
1 x 5-pin XLR (F) mounting version Bypass
1 x 3-pin XLR (F) mounting version Bypass |
| Control elements: |
Bypass/terminating resistor switch, power switch |
| Housing design: |
(19") 48.3 cm rack installation 1 U |
| Dimensions: |
Width: 48,3 cm
Depth: 20 cm
Height: 4,45 cm |
| Weight: |
3,31 kg |
| Item information |
Value |
| Shipping weight: |
4,80 kg
|
| Item weight: |
3,73 kg
|
| Dimensions
( Length × Width × Height ):
|
115,00 × 53,00 × 265,00 cm |
