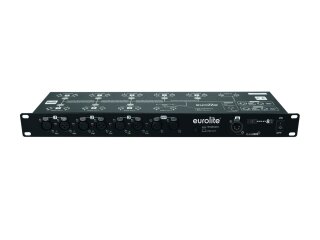

Splitter with 8 galvanically isolated outputs, 3/5-pin & QuickDMX XLR sockets
- DMX splitter for splitting one DMX input signal to 8 DMX outputs
- Input and outputs XLR 3-pin and 5-pin each
- Each DMX output with independent driver and status indicator
- Input and outputs galvanically isolated
- Input and outputs with a set of respective power supply and internal fuse
- Switchable termination resistor
- Control via DMX; QuickDMX via 5-pin XLR (M) mounting version (optional)
- (19") 48.3 cm rack installation 1 U
Package contents
- 1 x device, 1 x user manual, 1 x power cord
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
5 W |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| DMX input: |
1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version |
| DMX output: |
8 x 3-pin XLR (F) mounting version separate (galvanic) with independent driver and status indicator
8 x 5-pin XLR (F) mounting version separate (galvanic) with independent driver and status indicator
1 x 5-pin XLR (F) mounting version Bypass
1 x 3-pin XLR (F) mounting version Bypass |
| Control: |
DMX; QuickDMX via 5-pin XLR (M) mounting version (optional) |
| Control elements: |
Bypass/terminating resistor switch, power switch |
| Housing design: |
(19") 48.3 cm rack installation 1 U |
| Dimensions: |
Width: 48,3 cm
Depth: 14,5 cm
Height: 4,45 cm |
| Weight: |
2,22 kg |
| Item information |
Value |
| Shipping weight: |
3,30 kg
|
| Item weight: |
2,57 kg
|
| Dimensions
( Length × Width × Height ):
|
11,00 × 53,00 × 175,00 cm |
