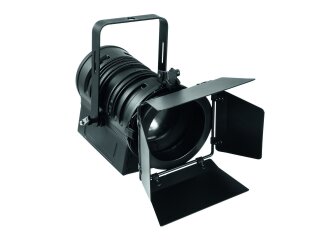

Fanless PC spot (DMX), warm white 57 W LED, color rendering index (CRI) >90
- 1 powerful LED 57 W COB (chip-on-board) warm white (WW)
- Strobe effect
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX
- Flicker-free
- With a beam angle of 11° - 48°
- Very high color rendering index (CRI)
- With mounting bracket
- LCD display
- Dimmer electronic; dimmer curves with adjustable response; Dimmer speed (step response) adjustable
- Preprogrammed in LED PC-Control 512; Light´J; Light Captain; Colorchief
- Rubber feet
- Silent operation
- For application areas such as: Trade fair and shop fitting; installation; stage; theater
- Application possibility: Suspended; on stand
Package contents
- 1 x spotlight, 1 x barndoor, 1 x filter frame, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
40 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Fixed power supply cord with safety plug |
| Fuse: |
5 x 20 mm, T 1 A fuse replaceable |
| LED type: |
1 x 57 W COB (chip-on-board) warm white (WW) |
| DMX channels: |
1; 2 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Passive convection cooling |
| Control: |
Stand-alone; DMX |
| Preprogrammed in: |
LED PC-Control 512; Light´J; Light Captain; Colorchief |
| Projection: |
Flicker-free |
| Beam angle: |
11° - 48° |
| Beam angle (1/2 peak): |
11 - 37° |
| Beam angle (1/10 peak): |
17 - 48° |
| Color temperature: |
3100K |
| Color rendering index (CRI): |
91 Ra |
| Illuminance in Lux (lx): |
Narrow 3m: 1656 lx, 6m: 424 lx
Wide 3m: 348 lx, 6m: 103 lx |
| Housing color: |
Black |
| Attachment system: |
Mounting bracket |
| Display type: |
LCD display |
| Transport aid: |
Rubber feet |
| Material: |
Aluminum casting |
| Slot for spot length: |
13,1 cm x 13,1 cm |
| Dimensions: |
Length: 27,5 cm
Width: 20,5 cm
Depth: 25 cm |
| Weight: |
3,85 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Mounting bracket |
| Diameter mounting holes: |
1 x Ø10mm; 2 x Ø6mm |
| Material: |
Metal, 3 mm |
| Power cord |
| Cable construction: |
3 x 0,75 mm² H05VV-F |
| Cable length: |
Approx. 1 m |
| Barndoor |
| Material: |
Aluminum, 1,5 mm; metal |
| Ring diameter: |
Outside: 12,9 mm
Inside: 10,9 mm |
| Filter frame |
| Diameter mounting holes: |
1 x Ø4mm |
| Shape: |
Octagonal |
| Material: |
Aluminum, 0,8 mm |
| Dimensions: |
Width: 13 cm
Height: 13 cm
Diameter: Ø 10,5 cm |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
5,60 kg
|
| Item weight: |
4,30 kg
|
| Dimensions
( Length × Width × Height ):
|
265,00 × 36,00 × 21,00 cm |
