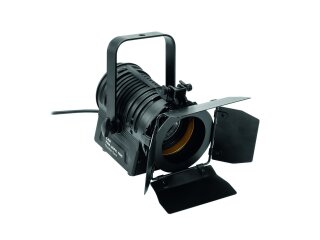

Fanless PC spot with 17 W white light LED, color rendering index (CRI) >90
- New LED technology that simulates the color temperature curve of a halogen lamp when dimming
- Two additional frost filters provide a soft, homogeneous light
- 1 powerful LED 17 W COB (chip-on-board) Dim to warm (homogenous color mix)
- The device is cooled by passive convection cooling
- Control via stand-alone
- Flicker-free
- With a beam angle of 17°
- Very high color rendering index (CRI)
- With mounting bracket
- Silent operation
- For application areas such as: Trade fair and shop fitting; wedding/gala/events; video and photography; mobile use
- Dimmer electronic
- Rubber feet
- Application possibility: Suspended; on stand
Package contents
- 1 x spotlight, 1 x barndoor, 1 x filter frame, 2 x frost filter, 1 x ring, 2 x lamp clamping ring, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
22 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Fixed power supply cord with safety plug |
| Fuse: |
5 x 20 mm, T 1 A fuse replaceable |
| LED type: |
1 x 17 W COB (chip-on-board) Dim to warm (homogenous color mix) |
| Cooling: |
Passive convection cooling |
| Control: |
Stand-alone |
| Projection: |
Flicker-free |
| Beam angle: |
17° |
| Beam angle (1/2 peak): |
17°
Frost filter 19°
Frost filter 26° |
| Beam angle (1/10 peak): |
36°
Frost filter 40°
Frost filter 53° |
| Color temperature: |
3000K |
| Color rendering index (CRI): |
92 Ra |
| Illuminance in Lux (lx): |
Warm white (WW) 3m: 727 lx, 6m: 188 lx |
| Housing color: |
Black |
| Attachment system: |
Mounting bracket |
| Transport aid: |
Rubber feet |
| Material: |
Aluminum casting |
| Slot for spot length: |
10 cm x 10 cm |
| Dimensions: |
Length: 21,5 cm
Width: 14,5 cm
Depth: 21 cm |
| Weight: |
2,23 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Mounting bracket |
| Diameter mounting holes: |
1 x Ø10mm |
| Material: |
Metal, 3 mm |
| Power cord |
| Cable construction: |
3 x 0,75 mm² H05VV-F |
| Cable length: |
Approx. 1 m |
| Barndoor |
| Material: |
Aluminum, 1 mm; metal |
| Ring diameter: |
Outside: 99 mm
Inside: 80 mm |
| Filter frame |
| Diameter mounting holes: |
1 x Ø4mm |
| Material: |
Aluminum, 0,8 mm |
| Color: |
Black |
| Dimensions: |
Width: 9,9 cm
Height: 9,9 cm
Diameter: Ø 8 cm |
| Frost filter |
| Material: |
Plastic |
| Color: |
Semi-transparent |
| Dimensions: |
Width: 0,2 cm
Diameter: Ø 8 cm |
| Ring |
| Material: |
Aluminum, 1 mm |
| Color: |
Gold |
| Dimensions: |
Depth: 1,3 cm
Diameter: Ø 8,2 cm |
| Lamp clamping ring |
| Material: |
Metal, 2 mm |
| Color: |
Black |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
3,60 kg
|
| Item weight: |
2,75 kg
|
| Dimensions
( Length × Width × Height ):
|
26,00 × 315,00 × 195,00 cm |
