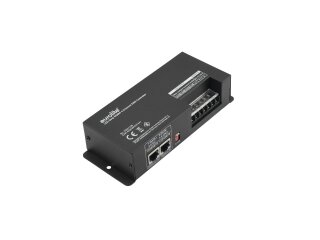

4-channel LED controller with DMX interface for RGB LEDs 12-24 V
- Compact LED controller for controlling RGBW LEDs (12-24 V) via DMX
- Converts standard DMX512 signals to PWM signals e.g. for driving LED strips
- 4 separate control channels for individual color mixing of red, green, blue and white LEDs
- Switchable termination resistor
- Plug-in screw terminals for connecting the LEDs and the power supply
- RJ45 jacks for serial connection
- Rugged black metal housing
- Integrated show programs
- Control via stand-alone
- For application areas such as: Clubs/dancing school; Trade fair and shop fitting; installation; restaurants, bars and hotels
- Silent operation
Package contents
- 1 x device, 1 x user manual
| Power supply: |
12/24V DC |
| Power consumption: |
Max. 384 W 12 V DC
Max. 768 W 24 V DC
Max. 96 W 12 V DC per channal
Max. 192 W 24 V DC per channal |
| Output current: |
Max. 4 x 8 A per channal |
| Power connection: |
Via screw terminal |
| Power output: |
Screw terminal |
| DMX channels: |
4 |
| DMX input: |
3-pin XLR (M) mounting version
1 x RJ-45 (F) mounting version |
| DMX output: |
3-pin XLR (F) mounting version
RJ-45 (F) mounting version |
| Control: |
Stand-alone |
| Dimensions: |
Length: 16,4 cm
Width: 6,6 cm
Height: 3,8 cm |
| Weight: |
0,30 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Item information |
Value |
| Shipping weight: |
0,40 kg
|
| Item weight: |
0,33 kg
|
| Dimensions
( Length × Width × Height ):
|
6,00 × 18,00 × 8,00 cm |
