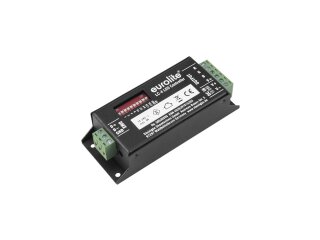

3-channel LED controller with DMX interface for RGB LEDs 12-24 V
- Compact LED controller for controlling RGB LEDs (12-24 V) via DMX
- Converts standard DMX512 signals to PWM signals e.g. for driving LED strips
- 3 separate control channels for individual color mixing of red, green and blue LEDs
- Plug-in screw terminals for connecting the LEDs and the power supply
- Rugged black metal housing
- Integrated show programs
- The device is cooled by passive convection cooling
- Control via DMX; stand-alone
- For application areas such as: Clubs/dancing school; Trade fair and shop fitting; installation; restaurants, bars and hotels
- Silent operation
Package contents
- 1 x controller, 1 x user manual
| Power supply: |
12/24V DC |
| Power consumption: |
Max. 108 W 12 V DC
Max. 216 W 24 V DC
36 W 12 V DC per channal
72 W 24 V DC per channal |
| IP classification: |
IP20 |
| Protection class: |
Protection class III |
| Output current: |
Max. 3 x 3 A per channal |
| Power connection: |
Via screw terminal |
| Power output: |
Screw terminal |
| DMX channels: |
4 |
| DMX input: |
Screw terminal |
| Cooling: |
Passive convection cooling |
| Control: |
DMX; stand-alone |
| Housing color: |
Black matte |
| Dimensions: |
Width: 4,5 cm
Depth: 10,9 cm
Height: 2,7 cm |
| Weight: |
0,15 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Item information |
Value |
| Shipping weight: |
0,20 kg
|
| Item weight: |
0,16 kg
|
| Dimensions
( Length × Width × Height ):
|
3,00 × 111,00 × 5,00 cm |
