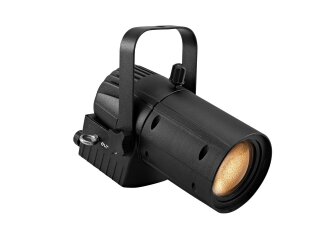

Fanless spotlight with 20 W COB LED, adjustable beam angle, color rendering index (CRI) >95
- Four beam angles adjustable via lens settings within the housing
- With plano-convex lens
- 1 powerful LED 20 W COB (chip-on-board) warm white (WW)
- The device is cooled by passive convection cooling
- Control via rotary dial for brightness
- Flicker-free
- With a beam angle of 10°
- Very high color rendering index (CRI)
- For application areas such as: Trade fair and shop fitting; installation; restaurants, bars and hotels; video and photography
- Silent operation
- Application possibility: Suspended; on stand
Package contents
- 1 x spotlight, 1 x user manual, 1 x power cord, 1 x mounting bracket, 1 x screw
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
15 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via 3-pin screw plug connector (M) mounting version power supply cord with safety plug (provided) |
| Device fuse: |
5 x 20 mm, T 0,5 A fuse replaceable |
| Lamp type: |
LED lamp |
| LED type: |
1 x 20 W COB (chip-on-board) warm white (WW) |
| Cooling: |
Passive convection cooling |
| Control: |
Rotary dial for brightness |
| Projection: |
Flicker-free |
| Beam angle: |
10° |
| Beam angle (1/2 peak): |
10°
15°
18°
22° |
| Beam angle (1/10 peak): |
19°
27°
30°
34° |
| Color temperature: |
3000K |
| Color rendering index (CRI): |
97 Ra |
| Illuminance in Lux (lx): |
Narrow warm white (WW) 1m: 6073 lx, 3m: 742 lx, 6m: 194 lx
Wide warm white (WW) 1m: 2718 lx, 3m: 350 lx, 6m: 92 lx |
| Housing color: |
Black |
| Dimensions: |
Length: 19,5 cm
Width: 11,5 cm
Height: 16,5 cm |
| Weight: |
1,12 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
1,70 kg
|
| Item weight: |
1,32 kg
|
| Dimensions
( Length × Width × Height ):
|
150.000,00 × 250.000,00 × 140.000,00 cm |
