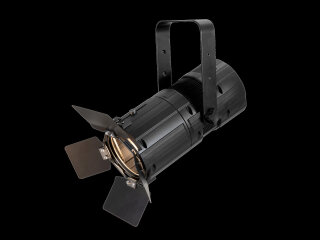

Compact spotlight with 20 W COB LED, manual zoom, color rendering index (CRI) >95
- 1 powerful LED 20 W COB (chip-on-board) warm white (WW)
- With fresnel lens
- With a beam angle of 11° - 40°
- Flicker-free
- The device is cooled by cooling fan
- Very high color rendering index (CRI)
- Control via stand-alone; DMX (optional); master/slave function (optional)
- For application areas such as: Trade fair and shop fitting; installation; theater; rental
- Very quiet working noise
- Application possibility: Suspended; on stand
Package contents
- 1 x spotlight, 1 x power cord, 1 x barndoor, 1 x plug (male), 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
48 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via 3-pin screw plug connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: |
3-pin screw plug connector (F) mounting version |
| Fuse: |
5 x 20 mm, T 1 A fuse replaceable |
| Lamp type: |
LED lamp |
| LED type: |
1 x 20 W COB (chip-on-board) warm white (WW) |
| Cooling: |
Cooling fan |
| Control: |
Stand-alone; DMX (optional); master/slave function (optional) |
| Projection: |
Flicker-free |
| Beam angle: |
11° - 40° |
| Beam angle (1/2 peak): |
11 - 30° |
| Beam angle (1/10 peak): |
21 - 40° |
| Color temperature: |
3100K |
| Color rendering index (CRI): |
96 Ra |
| Illuminance in Lux (lx): |
Narrow warm white (WW) 1m: 20302 lx, 3m: 2529 lx, 6m: 667 lx
Wide warm white (WW) 1m: 5751 lx, 3m: 748 lx, 6m: 207 lx |
| Housing color: |
Black |
| Material: |
Plastic; aluminum |
| Slot for spot length: |
Ø 11 cm |
| Dimensions: |
Length: 30,5 cm
Width: 16,0 cm
Height: 22,0 cm |
| Weight: |
1,94 kg |
| Noise classification: |
Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Mounting bracket |
| Diameter mounting holes: |
1 x Ø11mm; 2 x Ø8mm; 4 x Ø4mm |
| Material: |
Aluminum, 3 mm |
| Power cord |
| Cable construction: |
3 x 0,75 mm² H05VV-F |
| Cable length: |
Approx. 1,4 m |
| Barndoor |
| Material: |
Metal, 1 mm |
| Ring diameter: |
Outside: 99 mm
Inside: 90 mm |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
3,10 kg
|
| Item weight: |
2,35 kg
|
| Dimensions
( Length × Width × Height ):
|
195,00 × 39,00 × 195,00 cm |
