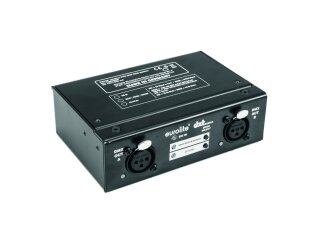

RDM-capable DMX splitter, 1in/2out with signal boost
- DMX splitter for splitting one DMX input signal to 2 DMX outputs
- Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
- Bypass function to process signals from older devices similar to DMX signals
- Output frequency adjustable: 22/44 Hz
- Outputs galvanically isolated
- Each DMX output can be connected to 32 DMX devices
- Control via RDM
- DMX feed-through for up to 32 further DMX devices
RDM For bidirectional communication over the DMX line
RDM switchable to prevent problems when using fixtures without RDM
- Built with NEUTRIK connector
- Made in Germany
- Each DMX output with active signal processing
- DMX fail mode (hold; blackout; zero values)
Package contents
- 1 x device, 1 x external mains adapter, 4 x foot, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz
12V DC 1000 mA |
| Power consumption: |
1,8 W |
| Power connection: |
Fixed power supply cord with safety plug |
| DMX input: |
1 x 3-pin XLR (M) mounting version |
| DMX output: |
2 x 3-pin XLR (F) mounting version separate (galvanic) with active signal processing |
| Control: |
RDM |
| DMX features: |
DMX feed-through for up to 32 further DMX devices
RDM For bidirectional communication over the DMX line
RDM switchable to prevent problems when using fixtures without RDM |
| DMX fail mode: |
Hold; blackout; zero values |
| Use of brands: |
Built with NEUTRIK connector |
| Dimensions: |
Width: 13 cm
Depth: 10 cm
Height: 4,1 cm |
| Weight: |
0,65 kg |
| Item information |
Value |
| Shipping weight: |
1,10 kg
|
| Item weight: |
0,83 kg
|
| Dimensions
( Length × Width × Height ):
|
55,00 × 325,00 × 24,00 cm |
There are no reviews yet.
