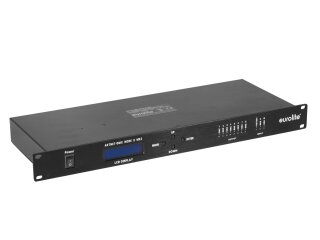

Art-Net interface for output of 8 universes on XLR
- Parallel DMX input possible (1024 channels)
- 8 optically isolated XLR plugs (3-pin) for DMX output
- 2 XLR jacks (3-pin) for DMX input
- Variable data routing capabilities for all DMX outputs
- User-friendly configuration directly at the front panel via 4 operating buttons and alphanumeric LCD screen (2 x 16 characters)
- LED indication for functions
- Splitter operation possible
- Can transmit up to 4096 DMX channels
- Control via Art-Net
- The device can be connected via RJ-45 (F) mounting version to the PC
- (19") 48.3 cm rack installation
Package contents
- 1 x device, 1 x user manual, 1 x power cord
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
5 W |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| DMX channels: |
Output 4096 |
| DMX input: |
2 x 3-pin XLR (M) mounting version |
| DMX output: |
8 x 3-pin XLR (F) mounting version |
| Network connection: |
Protocol: Art-Net 3 via 2x RJ-45 (F) mounting version |
| Control: |
Art-Net |
| Connections: |
2 x RJ-45 E-Con (F) mounting version |
| PC connect: |
Via RJ-45 (F) mounting version |
| Housing design: |
(19") 48.3 cm rack installation |
| Dimensions: |
Width: 48,3 cm
Depth: 17,5 cm
Height: 4,45 cm |
| Weight: |
2,40 kg |
| Item information |
Value |
| Shipping weight: |
3,60 kg
|
| Item weight: |
2,80 kg
|
| Dimensions
( Length × Width × Height ):
|
10,00 × 56,00 × 24,00 cm |
