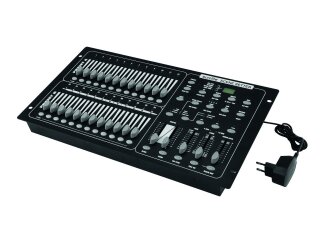

Theater light console for 24 DMX channels, brightness control for each scene
- 12 scenes can be called up directly via the faders
- Blackout function
- Mix and single chase function
- Blind/home function
- Supports standard MIDI
- Programmable 48 scenes/chases distributed over 4 page/s
- Can transmit up to 24 DMX channels
- Control via DMX; sound to light via microphone; sound to light via RCA (F) mounting version
- (19") 48.3 cm rack installation 6 U
- Desktop console housing
- For application areas such as: Clubs/dancing school; Trade fair and shop fitting; theater; restaurants, bars and hotels
- Silent operation
Package contents
- 1 x controller, 1 x user manual, 1 x external mains adapter
Power supply: |
230 V AC, 50 Hz 12V DC 500 mA |
Pin configuration: |
Inside + / outside - |
Power consumption: |
4,00 W |
IP classification: |
IP20 |
Protection class: |
Protection class III |
Power connection: |
Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
Programs: |
Programmable 48 scenes/chases distributed over 4 page/s |
DMX channels: |
Output 24 |
DMX output: |
1 x 3-pin XLR (F) mounting version |
Control: |
DMX; sound to light via microphone; sound to light via RCA (F) mounting version |
Housing color: |
Black |
Control elements: |
DMX polarity selector, power switch |
Color: |
Black |
Mounting depth: |
80 mm |
Housing design: |
(19") 48.3 cm rack installation 6 U Desktop console housing |
Dimensions: |
Width: 48,3 cm Depth: 26,4 cm Height: 8,9 cm |
Weight: |
4,30 kg |
Noise classification: |
Class 0 (no noise at all) |
Item information |
Value |
Shipping weight: |
6,80 kg
|
Item weight: |
5,20 kg
|
Dimensions
( Length × Width × Height ):
|
155,00 × 565,00 × 335,00 cm |
