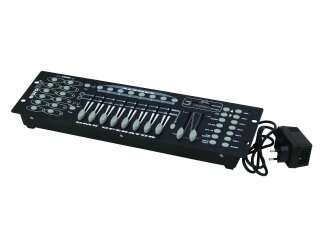

DMX controller for 12 devices with max. 16 DMX channels
- 8 preset scenes
- Copy function for the scenes, programs and records
- Blackout function
- Programmable 6 scenes/chases each with 240 cues
- Can transmit up to 192 DMX channels
- Control via DMX; sound to light via microphone
- 4 digit 7-segment LED display
- (19") 48.3 cm rack installation 3 U
- For application areas such as: Party room; small rental
- Silent operation
Package contents
- 1 x controller, 1 x user manual, 1 x external mains adapter
Power supply: |
230 V AC, 50 Hz |
Power consumption: |
4,00 W |
IP classification: |
IP20 |
Protection class: |
Protection class III |
Power connection: |
Mains input via 3-pin screw plug connector (M) mounting version power supply cord with AC adapter (provided) |
Programs: |
Programmable 6 scenes/chases each with 240 cues |
DMX channels: |
Output 192 |
DMX output: |
1 x 3-pin XLR (F) mounting version |
Control: |
DMX; sound to light via microphone |
Housing color: |
Black |
Display type: |
4 digit 7-segment LED display |
Color: |
Black |
Housing design: |
(19") 48.3 cm rack installation 3 U |
Dimensions: |
Width: 48,3 cm Depth: 13,2 cm Height: 8,9 cm |
Weight: |
2,35 kg |
Noise classification: |
Class 0 (no noise at all) |
Item information |
Value |
Shipping weight: |
3,60 kg
|
Item weight: |
2,75 kg
|
Dimensions
( Length × Width × Height ):
|
14,00 × 58,00 × 20,00 cm |
