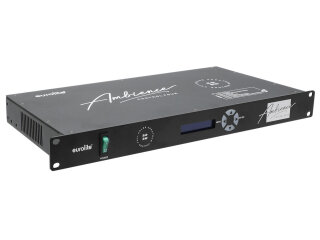

4-zone controller for RGB/W+CCT LEDs (24V)
- Simple control of multiple LED types
- Controls single- and multi-colored LEDs (CCT, RGB, RGBW, RGB+CCT) as desired
- 4 individually controllable zones
- Max. load 500 watts
- Independent DMX addressing per zone possible
- Dimmer electronic
- 20 integrated show programs
- Control via QuickDMX via USB (optional)
- LCD display
- MEANWELL Power supply
- For application areas such as: Clubs/dancing school; Trade fair and shop fitting; installation; restaurants, bars and hotels
- Silent operation
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 2 x angle, 4 x adapter, 4 x screw
| Power supply: |
100-240 V AC, 50/60 Hz |
| Output power: |
Max. 500 W
Max. 270 W per channal |
| Output current: |
Max. 20,8 A |
| Power connection: |
Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided) |
| DMX channels: |
1; 2; 4; 5; 7 |
| DMX input: |
3-pin XLR (M)
RJ-45 (F) mounting version |
| DMX output: |
3-pin XLR (F)
RJ-45 (F) mounting version |
| Control: |
QuickDMX via USB (optional) |
| Control channels: |
4 |
| Display type: |
LCD display |
| Use of brands: |
MEANWELL Power supply |
| Color: |
Black |
| Dimensions: |
Length: 31,7 cm
Width: 21,4 cm
Height: 6,2 cm |
| Weight: |
3,63 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Item information |
Value |
| Shipping weight: |
5,20 kg
|
| Item weight: |
3,98 kg
|
| Dimensions
( Length × Width × Height ):
|
270.000,00 × 560.000,00 × 85.000,00 cm |
