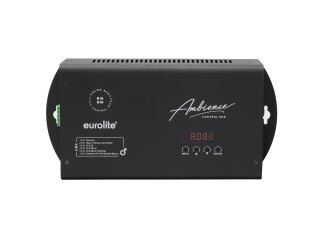

Compact controller for RGB/W+CCT LEDs (24V)
- Simple control of multiple LED types
- Controls single- and multi-colored LEDs (CCT, RGB, RGBW, RGB+CCT) as desired
- Max. load 150 watts
- 20 integrated show programs
- Control via DMX; QuickDMX (optional); stand-alone; master/slave function
- Flicker-free
- 4 digit 7-segment LED display
- MEANWELL Power supply
- Dimmer electronic
- For application areas such as: Clubs/dancing school; Trade fair and shop fitting; installation; restaurants, bars and hotels
- Silent operation
Package contents
- 1 x device, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Output power: |
Max. 150 W |
| Output current: |
Max. 6,25 A |
| Power connection: |
Power supply cord with safety plug (provided) |
| Cable construction: |
3 x 0,75 mm² H05VV-F |
| Cable length: |
Approx. 1,4 m |
| DMX channels: |
1; 2; 3; 4; 5; 7 |
| DMX input: |
3-pin XLR (M) |
| DMX output: |
3-pin XLR (F) |
| Control: |
DMX; QuickDMX (optional); stand-alone; master/slave function |
| Projection: |
Flicker-free |
| Control channels: |
1 |
| Housing color: |
Black matte |
| Display type: |
4 digit 7-segment LED display |
| Use of brands: |
MEANWELL Power supply |
| Material: |
Metal |
| Dimensions: |
Length: 32 cm
Width: 15 cm
Height: 5,8 cm |
| Weight: |
1,72 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Item information |
Value |
| Shipping weight: |
2,50 kg
|
| Item weight: |
1,95 kg
|
| Dimensions
( Length × Width × Height ):
|
115,00 × 31,00 × 21,00 cm |
