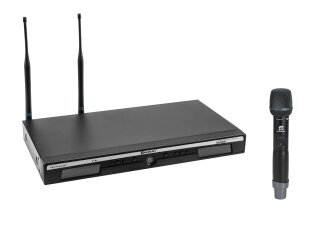

RELACART UR-260D 2-channel UHF Receiver 522-554 MHz
Diversity wireless receiver with DSP for microphone modeling and PC software
- 2-channel multifrequency wireless receiver with 24-bit processor for high-end audio quality
- Integrated MagicEQ enables amazing microphone modeling of hand-held microphones
- Choose from 7 presets based on popular microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-definable presets
- Integrated Feedback Killer effectively eliminates feedback, providing maximum gain and increased clarity on every microphone
- DSP programming and management via Ethernet port and intuitively operated PC software
- High-quality antenna diversity reception
- Up to 12 transmitters can be operated in parallel without interference
- Pilot frequency squelch technology delete wireless RF interference
- Automatic frequency scan (AFS) finds interference-free channels
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Multiple units can be linked with network cables
- Lock function for prevents undesired changes to settings
- 2 detachable BNC antennas allow for use with the R-14D antenna divider
- Rugged metal housing
- Digital signal processor 96kHz, 24 bit
- Operating range up to 80m
- Multicolor LCD display
- The device can be connected via RJ-45 (F) mounting version to the PC in connection with RELACART Magic EQ software
- Desktop console housing
- (19") 48.3 cm rack installation possible 1 U
Package contents
- 1 x receiver, 2 x antenna, 1 x external mains adapter, 1 x jack cable, 2 x mounting bracket, 6 x screw, 1 x user manual, 1 x declaration of conformity
RELACART UH-222D Microphone 522-554 MHz
Hand-held microphone with PLL multifrequency transmitter
- Dynamic hand-held microphone with UHF pilot tone technology (PLL)
- Ergonomic aluminum alloy housing, applicable for touring
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- RF output power Hi/Low adjustable
- Gain level Hi/Mid/Low adjustable
- Capsule M-022
- Directly compatible with Shure's SM58 capsule
- Polar pattern: Super cardoid
- Operating range up to 80m
- OLED display
- Charge status indicator
- Up to 12 transmitters can be operated in parallel without interference
Package contents
- 1 x microphone, 1 x user manual, 1 x declaration of conformity
| Weight: |
2,96 kg |
| RELACART UR-260D 2-channel UHF Receiver 522-554 MHz |
| Type: |
Receiver |
| Power supply: |
100-240 V AC, 50/60 Hz
12V DC 1000 mA |
| Power consumption: |
Max. 9 W |
| Power connection: |
Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Number of channels: |
2 |
| Frequency range: |
45 - 18000 Hz |
| S/N ratio: |
>100 dB |
| THD: |
<0,5 % at 1 kHz |
| Network connection: |
Protocol: Ethernet TCP/IP via 1x RJ-45 (F) mounting version |
| DSP: |
Digital signal processor 96kHz, 24 bit |
| Range: |
Range up to 80m |
| Frequency band: |
UHF 522 - 554 MHz |
| Diversity: |
Antenna diversity |
| Switching bandwidth: |
32 MHz |
| Frequency stability: |
± 0,0005 % |
| Parallel mode: |
Max. 12 transmitter |
| Modulation: |
FM |
| Frequency selection: |
151 switchable frequencies
In 10 groups with up to 18 preset frequencies each |
| Display type: |
Multicolor LCD display |
| Control elements: |
Power switch, groundlift selector, menu, navigation keys |
| Connections: |
Antenna via 2 x BNC (F) 8 V
Output: microphone via 2 x 3-pin XLR (M) mounting version
Output: line via 1 x 6.3 mm plug (unbal.) |
| Material: |
Metal |
| Color: |
Black |
| PC connect: |
RELACART Magic EQ software via RJ-45 (F) mounting version |
| Housing design: |
Desktop console housing
(19") 48.3 cm rack installation possible 1 U |
| Dimensions: |
Width: 41 cm
Depth: 26 cm
Height: 4,3 cm |
| Weight: |
2,40 kg |
| RELACART UH-222D Microphone 522-554 MHz |
| Type: |
Hand-held transmitter |
| Power supply: |
3V DC |
| Capsule type: |
Dynamic |
| Polar pattern: |
Super cardoid |
| Battery: |
2 x Mignon (AA) (not included) |
| Frequency range: |
120 - 16000 Hz |
| Sensitivity: |
-53 dB |
| Max. SPL: |
145 dB |
| Range: |
Range up to 80m |
| Frequency band: |
UHF 522 - 554 MHz |
| Switching bandwidth: |
32 MHz |
| Parallel mode: |
Max. 12 transmitter |
| RF power output: |
10 mW (LO); 30 (HI) |
| Modulation: |
FM |
| Frequency selection: |
151 switchable frequencies
In 10 groups with up to 18 preset frequencies each |
| Display type: |
OLED display |
| Display: |
Charge status indicator , frequency , channel |
| Control elements: |
Gain-switch (high-mid-low), transmitter power switch (high-low) |
| Switch: |
On/off/mute switch |
| Material: |
Aluminum |
| Dimensions: |
Length: 26 cm
Diameter: Ø 5,4 cm |
| Weight: |
0,28 kg |
| Item information |
Value |
| Shipping weight: |
6,50 kg
|
| Item weight: |
5,00 kg
|
