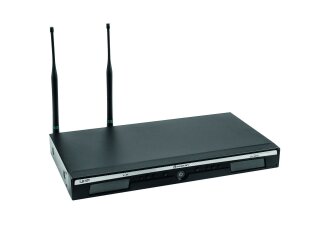

RELACART UR-222D 2-Channel UHF Receiver

Item number: 13055189

2-channel multifrequency wireless receiver with true diversity reception

  • 2-channel multifrequency wireless receiver with high-quality true diversity reception
  • 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
  • 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
  • Parallel operation of up to 9 systems is possible without any interference
  • Pilot tone technology (PLL) for interference-free reception
  • Automatic frequency scan (AFS) finds interface-free channels
  • Easy and error-free synchronization between receiver and transmitter via infrared signal
  • LCD for battery status of the microphone, antenna A/B, RF reception level, AF audio level and frequency
  • XLR and 6.3 mm jack output
  • 2 detachable BNC antennas allow for use with the R-14D antenna divider
  • Delivery includes practical transport bag with jack cable and power unit
  • Durable metal housing
  • 483 mm rack installation possible with supplied mounting brackets
  • Matching transmitters optionally available: hand-held microphone (UH-222D/C) and pocket transmitter (UT-222)
  • License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
  • Use a operating range up to 80m with line of sight
  • Desktop console housing 1 U; (19") 48.3 cm rack installation (provided)

Category: Drahtlos-Mikrofonanlagen


284,41 €

including 20% VAT. , plus shipping (Standard)

Recommended retail price: 260,61 €
Available now!

Shipping time: 4 - 8 workdays




The UR-222D is an affordable and reliable UHF system for everyday use. The device works with 90 channel presets in 10 groups. 9 channels can be operated in parallel. True diversity receiver technology, pilot tone and adjustable noise squelch guarantee reliable transmission. Setup is quick and easy using auto-scan and infrared sync.

2-channel multifrequency wireless receiver with true diversity reception

  • 2-channel multifrequency wireless receiver with high-quality true diversity reception
  • 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
  • 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
  • Parallel operation of up to 9 systems is possible without any interference
  • Pilot tone technology (PLL) for interference-free reception
  • Automatic frequency scan (AFS) finds interface-free channels
  • Easy and error-free synchronization between receiver and transmitter via infrared signal
  • LCD for battery status of the microphone, antenna A/B, RF reception level, AF audio level and frequency
  • XLR and 6.3 mm jack output
  • 2 detachable BNC antennas allow for use with the R-14D antenna divider
  • Delivery includes practical transport bag with jack cable and power unit
  • Durable metal housing
  • 483 mm rack installation possible with supplied mounting brackets
  • Matching transmitters optionally available: hand-held microphone (UH-222D/C) and pocket transmitter (UT-222)
  • License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
  • Use a operating range up to 80m with line of sight
  • Desktop console housing 1 U; (19") 48.3 cm rack installation (provided)


Type: Receiver
Power supply: 100-240 V AC, 50/60 Hz
12 V DC 1 A
Power consumption: 5 W
Power connection: Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Number of channels: 2
Frequency range: 45 - 18000 Hz
S/N ratio: >105 dB
Display type: Multicolor LCD display
Control elements: Navigation keys, menu, groundlift selector
Connections: Output: 2 x line via 3-pin XLR
Output: 2 x line via 6.3 mm plug (unbal.)
2 x antenna via BNC (F) 8 V
Frequency band: UHF 863 - 865 MHz; UHF 823 - 832 MHz
Frequency selection: 90 Switchable frequencys
In 10 groups with up to 10 preset frequencies each
Modulation: FM
Frequency stability: ± 0,0005 %
Range: 80 m with line of sight
Switching bandwidth: 11 MHz
Diversity: Antenna diversity
Material: Metal
Housing design: Desktop console housing 1 U
(19") 48.3 cm rack installation (provided)
Dimensions: Width: 41 cm
Depth: 26 cm
Height: 4,6 cm
Weight: 2,17 kg

Shipping weight: 3,00 Kg
Product weight: 3,00 Kg
