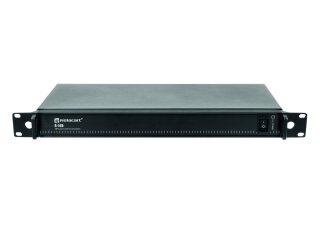

Antenna distributor (470 - 900 MHz)
- Active antenna distributor for operating up to four true diversity UHF receivers on one pair of multi-antennas
- Improves the interference safety and enlarges the range
- Replaces the respective antennas and PSUs of the individual receivers
- Up to five antenna distributors R-14D can be connected among each other for use of 16 microphones in total
- Low-voltage outputs for supplying four UHF receivers, incl. matching DC-connection cables
- Use in the entire UHF frequency range (470 - 900 MHz)
- All antenna connections via BNC jacks, incl. 10 x BNC cable
- UHF 470 - 900 MHz License-free and approved in large parts of Europe
- (19") 48.3 cm rack installation
Package contents
- 1 x device, 1 x power cord, 10 x BNC cable, 4 x adapter cable, 1 x user manual, 1 x declaration of conformity
| Type: |
Antennas and distributors |
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
Max. 60 W |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Impedance: |
50 Ohm |
| Gain: |
Output: 0 dB |
| Frequency band: |
UHF 470 - 900 MHz |
| Output voltage: |
4 x 12 V DC |
| Status LED: |
Power |
| Connections: |
Input: antenna via 2 x BNC (F) 8 V
Output: antenna via 8 x BNC (F) |
| Switch: |
On/off switch |
| Material: |
Metal |
| Color: |
Black |
| Housing design: |
(19") 48.3 cm rack installation |
| Dimensions: |
Width: 48,3 cm
Depth: 24,2 cm
Height: 4,45 cm |
| Weight: |
3,00 kg |
| Item information |
Value |
| Shipping weight: |
5,20 kg
|
| Item weight: |
4,00 kg
|
| Dimensions
( Length × Width × Height ):
|
85,00 × 59,00 × 43,00 cm |
