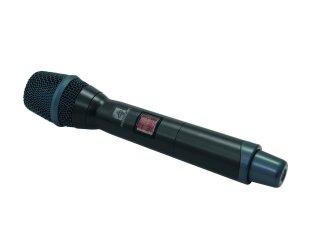

RELACART H-31 Microphone for HR-31S system

Item number: 13055201

Hand-held microphone with PLL multifrequency transmitter

  • Dynamic hand-held microphone with UHF pilot tone technology (PLL)
  • Ergonomic aluminum alloy housing, applicable for touring
  • Matches receiver HR-31S
  • 2 different frequency ranges: 731-790 MHz (10 EU countries) and 823-832 MHz (14 EU countries)
  • 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
  • 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
  • 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
  • Infrared interface for easy and error-free synchronization with the receiver via infrared signal
  • Operation range approx. 80 meters
  • OLED display for battery status, frequency and channel
  • Mute function
  • RF output power Hi/Low adjustable
  • Gain level Hi/Mid/Low adjustable
  • Directly compatible with Shure's SM58 capsule
  • Long battery life for up to 15 hours continuous operation
  • Operation via 2 x 1.5 V battery (type AA), not included
  • License-free and approved in large parts of the EU (please check on a country-by-country basis)
  • Polar pattern: Cardioid
  • Battery: 2 xMignon (AA) (not included)

Category: Drahtlos-Mikrofonanlagen


229,90 €

including 20% VAT. , plus shipping (Standard)

Old price: 242,44 €
Recommended retail price: 248,71 €
(You save 7.56%, that is 18,81 €)
Available now!

Shipping time: 4 - 8 workdays






Hand-held microphone with PLL multifrequency transmitter

  • Dynamic hand-held microphone with UHF pilot tone technology (PLL)
  • Ergonomic aluminum alloy housing, applicable for touring
  • Matches receiver HR-31S
  • 2 different frequency ranges: 731-790 MHz (10 EU countries) and 823-832 MHz (14 EU countries)
  • 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
  • 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
  • 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
  • Infrared interface for easy and error-free synchronization with the receiver via infrared signal
  • Operation range approx. 80 meters
  • OLED display for battery status, frequency and channel
  • Mute function
  • RF output power Hi/Low adjustable
  • Gain level Hi/Mid/Low adjustable
  • Directly compatible with Shure's SM58 capsule
  • Long battery life for up to 15 hours continuous operation
  • Operation via 2 x 1.5 V battery (type AA), not included
  • License-free and approved in large parts of the EU (please check on a country-by-country basis)
  • Polar pattern: Cardioid
  • Battery: 2 xMignon (AA) (not included)


Type: Transmitter
Power connection: Battery/battery pack (not included)
Polar pattern: Cardioid
Battery: 2 xMignon (AA) (not included)
Frequency band: UHF 823 - 832 MHz; UHF 731 - 790 MHz
Capsule type: Dynamic
Range: 80 m with line of sight
Material: aluminium
Length: 25,6 cm
Diameter: 5,1 cm
Weight: 0,29 kg
Type: Dynamic
Carrier frequency: UHF 731-790 MHz and 823-832 MHz
Transmitting frequencies: 292
10 frequency banks with up to 25 preset frequencies each +
8 frequency banks with up to 7 preset frequencies each
Switching bandwidth: 68 MHz
RF power output: 50 mW
Deviation: ±45 kHz
Modulation: FM
Current consumption: approx. 90 mA

Shipping weight: 412,00 Kg
Product weight: 0,41 Kg
