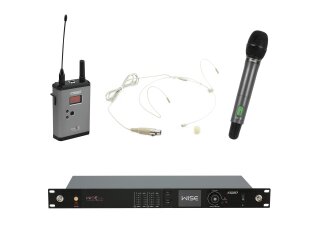

License-free true diversity wireless receiver incl. wireless microphone, pocket transmitter and headset
License-free true diversity wireless receiver with 2.4GHz iSync control management
Weight: |
3,50 kg |
PSSO WISE TWO 2-Channel True Diversity Receiver 823-832/863-865MHz |
Type: |
Receiver |
Power supply: |
100-240 V AC, 50/60 Hz 12-15 V DC 1,5 A |
Power consumption: |
8 W |
Power connection: |
Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
Number of channels: |
2 |
Frequency range: |
50 - 20000 Hz |
S/N ratio: |
>96 dB |
THD: |
<0,1 % at 1 kHz |
Gain: |
Microphone -32 dB to +4 dB Output: -32 dB to +4 dB |
Range: |
Range up to 60m with line-of-sight |
Frequency band: |
UHF 823 - 832 MHz; UHF 863 - 865 MHz |
Diversity: |
True diversity |
Modulation: |
FM |
Frequency selection: |
45 Switchable frequencies In 5 groups Frequencies automatically scannable |
Display type: |
Multicolor LCD display |
Control elements: |
Power switch, groundlift selector, menu, encoder |
Connections: |
Antenna via 2 x BNC (F) 12-15 V Antenna via 1 x SMA (F) mounting version Output: mic/line via 2 x 3-pin XLR Output: mic/line via 2 x 6.3 mm jack socket (mono) mounting version Output: for audio/data link via 2 x BNC (F) |
Channels: |
Microphon chanal: 2 x mono with Mic-line switch via XLR or jack |
Switch: |
Low cut switch |
Material: |
Metal |
Color: |
Black |
PC connect: |
, firmware can be updated |
Housing design: |
(19") 48.3 cm rack installation 1 U |
Dimensions: |
Width: 48 cm Depth: 27 cm Height: 4,3 cm |
Weight: |
2,9 kg |
PSSO WISE Dynamic Wireless Microphone 823-832/863-865MHz |
Type: |
Hand-held transmitter |
Power supply: |
3 V DC |
Power connection: |
Battery/battery pack |
Capsule type: |
Dynamic |
Polar pattern: |
Cardioid |
Battery: |
2 x Mignon (AA) (not included) |
Frequency range: |
50 - 18000 Hz |
Sensitivity: |
-74 dB |
Gain: |
-32 dB to +4 dB |
Range: |
Range up to 60m with line-of-sight |
Frequency band: |
UHF 863 - 865 MHz; UHF 823 - 832 MHz |
RF power output: |
50 mW (HI); 10 mW (LO) |
Modulation: |
FM |
Frequency selection: |
Switchable frequencies |
Display type: |
Multicolor LCD display |
Control elements: |
Menu, navigation keys |
Color code: |
Color indicator and name adjustable |
Switch: |
On/off/mute switch |
Material: |
Aluminum |
Dimensions: |
Length: 26,5 cm Diameter: Ø 5,2 cm |
Weight: |
390 g |
PSSO WISE Bodypack 823-832/863-865MHz |
Type: |
Pocket transmitter |
Power supply: |
3 V DC |
Power connection: |
Battery/battery pack |
Battery: |
2 x Mignon (AA) (not included) |
Frequency range: |
50 - 18000 Hz |
Gain: |
-32 dB to +4 dB |
Range: |
Range up to 60m with line-of-sight |
Frequency band: |
UHF 823 - 832 MHz; UHF 863 - 865 MHz |
RF power output: |
50 mW (HI); 10 mW (LO) |
Modulation: |
FM |
Frequency selection: |
Switchable frequencies |
Display type: |
Multicolor LCD display |
Control elements: |
Menu, navigation keys |
Connections: |
Microphone via 1 x Mini XLR (M) 3-pin mounting version 5 V |
Color code: |
Color indicator and name adjustable |
Switch: |
On/off switch; Mute control |
Material: |
Aluminum |
Color: |
Grey |
Dimensions: |
Width: 7 cm Depth: 3 cm Height: 13 cm |
Weight: |
190 g |
PSSO WISE Headset for Bodypack |
Type: |
Headset microphone |
Power supply: |
2-10 V DC |
Cable length: |
1,5 m |
Capsule type: |
Electret |
Polar pattern: |
Omnidirectional |
Frequency range: |
100 - 20000 Hz |
S/N ratio: |
>58 dB |
Sensitivity: |
-45 dB |
Impedance: |
1 kOhm 1000 Ohm |
Connections: |
Mini XLR (F) 3-pin |
Material: |
Metal |
Color: |
Skin-colored |
Dimensions: |
Diameter: Ø 3,5 mm |
Weight: |
20 g |
