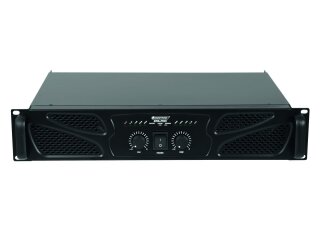

Class AB PA amplifier with limiter, 2 x 350 W RMS (4 ohms), 2 x 240 W RMS (8 ohms)
- 2 operating modes can be selected (stereo or bridged)
- 2 level controls
- Each channel with LED for activated protective circuit (protect) and output meter with clip LED
- Signal inputs via XLR or 6.3mm jack connectors
- Speaker outputs via lockable speaker jacks and pairs of screw terminals
- Additional Speaker plug for 8-ohm bridge operation
- Class AB circuitry
- Highly efficient air flow from front to rear
- The device is cooled by temperature-controlled fan
- (19") 48.3 cm rack installation 2 U
- For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental; sports centres/gyms
Package contents
- 1 x amplifier, 1 x user manual, 1 x power cord, 4 x foot, 4 x screw
| Power supply: |
115/230 V AC, 50/60 Hz |
| Power consumption: |
495 W 1/8 power |
| Output power: |
2 x 350 W RMS (4 ohms)
2 x 240 W RMS (8 ohms)
700 W RMS bridged (8 ohms) |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: |
20 - 20000 Hz |
| S/N ratio: |
>95 dB |
| THD: |
<0,5 % at 1 kHz |
| Cooling: |
1 x temperature-controlled fan , air flow from front to rear |
| Impedance: |
Input: 20 kOhm , bal.
Input: 10 kOhm , unbal. |
| Circuitry: |
Class AB |
| Slew rate: |
>20 V/µs |
| Damping factor: |
>350 |
| Control elements: |
Power switch, level control per channel, groundlift selector, limiter selector, mode switch (stereo/bridged) |
| Controls: |
Short-circuit; overheat; DC voltage; power on/off transients; softstart |
| Status LED: |
Power, level meter, clip, bridged, protect |
| Connections: |
Input: line via 2 x 3-pin XLR
Input: line via 2 x 6.3 mm jack socket (stereo) mounting version
Output: speaker via 2 x speaker built-in socket (F)
Output: speaker via screw terminal
Output: speaker (bridge) via 1 x speaker built-in socket (F)
Output: speaker (bridge) via screw terminal |
| Input sensitivity: |
1,4 V |
| Max. level: |
Input: +21 dBV
Input: +9 V |
| Housing design: |
(19") 48.3 cm rack installation 2 U |
| Dimensions: |
Width: 48,3 cm
Depth: 35,4 cm
Height: 8,9 cm |
| Weight: |
8,70 kg |
| Item information |
Value |
| Shipping weight: |
12,40 kg
|
| Item weight: |
9,55 kg
|
| Dimensions
( Length × Width × Height ):
|
15,00 × 53,00 × 42,00 cm |
