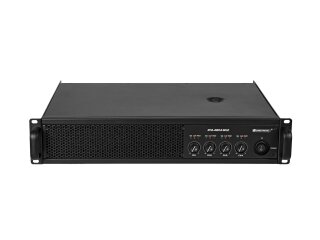

Class D PA amplifier with limiter, 4 x 1800 W RMS (2 ohms), 4 x 1200 W RMS (4 ohms)
- 3 operating modes can be selected (stereo, parallel or bridged)
- Input sensitivity adjustable
- Level control per channel
- Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
- Speaker outputs via lockable Speaker plugs
- Highly efficient air flow from front to rear
- The device is cooled by cooling fan
- (19") 48.3 cm rack installation 2 U
- For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental; sports centres/gyms
Package contents
- 1 x amplifier, 4 x foot, 1 x user manual
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
1380 W 1/8 power |
| Protection class: |
Protection class I |
| Output power: |
4 x 1800 W RMS (2 ohms)
4 x 1200 W RMS (4 ohms)
4 x 800 W RMS (8 ohms)
2 x 2500 W RMS bridged (4 ohms)
2 x 2400 W RMS bridged (8 ohms) |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: |
20 - 20000 Hz |
| S/N ratio: |
>102 dB |
| THD: |
<0,1 % at 1 kHz |
| Cooling: |
2 x cooling fan , air flow from front to rear |
| Impedance: |
Input: 20 kOhm , bal.
Input: 10 kOhm , unbal. |
| Gain: |
40 dB/ 0,775 V
38 dB/ 1 V
32 dB/ 2 V |
| Housing color: |
Black |
| Circuitry: |
Class D |
| Slew rate: |
>30 V/µs |
| Damping factor: |
>500 |
| Control elements: |
Power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch |
| Controls: |
Overheat; overload; short-circuit; softstart; DC voltage; VHF; current limiting; limiter |
| Status LED: |
Power, signal, clip, protect |
| Connections: |
Input: line via 4 x 3-pin XLR (F) mounting version
Link: line via 4 x 3-pin XLR (M) mounting version
Output: speaker via 4 x speaker built-in socket (F) |
| Input sensitivity: |
0,775 V; 1 V; 2 V , switchable |
| Housing design: |
(19") 48.3 cm rack installation 2 U |
| Dimensions: |
Width: 48,3 cm
Depth: 33,0 cm
Height: 8,8 cm |
| Weight: |
14,20 kg |
| Item information |
Value |
| Shipping weight: |
19,90 kg
|
| Item weight: |
15,30 kg
|
| Dimensions
( Length × Width × Height ):
|
145,00 × 555,00 × 435,00 cm |
