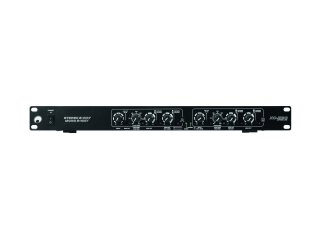

Active crossover, stereo 2-way and mono 3-way operation
- 2-way or 3-way stereo operation
- Variable 24 dB per octave Linkwitz-Riley filters
- Crossover frequencies continuously adjustable between 45 Hz and 9.6 kHz
- Low frequency summed (subwoofer) output
- Individual output level controls for each frequency range
- Butterworth low-cut filter (12 dB/octave 40 Hz) to protect subwoofers
- X10 range switch on both channels
- Phase reverse switch on all outputs
- LED indicators for all important functions for easy status identification
- Balanced XLR inputs and outputs
- (19") 48.3 cm rack installation 1 U
- For application areas such as: Installation; clubs/dancing school; stage; homerecording and studios; band/rehearsal room
Package contents
- 1 x controller, 1 x user manual, 1 x power cord
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
8 W |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| S/N ratio: |
>100 dB |
| THD: |
<0,05 % at 1 kHz |
| Impedance: |
Input: 25 kOhm , unbal.
Input: 50 kOhm , bal.
Output: 100 Ohm , unbal.
Output: 200 Ohm , bal. |
| Gain: |
Input: ± 12 dB
Output: - ∞ to + 6 dB |
| Filter: |
Low cut: 40 Hz 12db/oct Butterworth |
| Phase invert: |
Per output, switchable |
| Crosstalk: |
>80 dB |
| Control elements: |
Mode switch (2-way,stereo/3-way,mono), Phase reversal switch, multiplier switch |
| Status LED: |
Power, low cut, mono, stereo, Phase reversal LED; multiplier LED |
| Connections: |
Input: line via 2 x 3-pin XLR
Output: line via 4 x 3-pin XLR |
| Crossover frequency: |
45-9600 Hz, 24db/oct , Linkwitz-Riley |
| Max. level: |
Input: +22 dBu
Output: +21 dBu |
| Color: |
Black |
| Housing design: |
(19") 48.3 cm rack installation 1 U |
| Dimensions: |
Width: 48,3 cm
Depth: 15,2 cm
Height: 4,45 cm |
| Weight: |
1,87 kg |
| Item information |
Value |
| Shipping weight: |
3,00 kg
|
| Item weight: |
2,33 kg
|
| Dimensions
( Length × Width × Height ):
|
11,00 × 535,00 × 24,00 cm |
