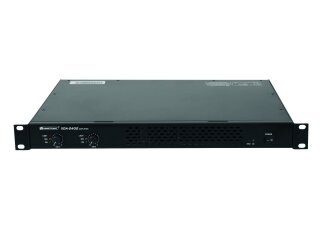

Class D stereo PA amplifier with SMPS, 2 x 1200 W RMS (4 ohms), 2 x 880 W RMS (8 ohms)
- Stereo PA amplifier with class D circuitry
- Low weight and height due to integrated switch mode power supply
- 2 level controls
- Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
- Speaker outputs via lockable Speaker plugs
- The device is cooled by cooling fan
- (19") 48.3 cm rack installation 1 U
- For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental; sports centres/gyms
Package contents
- 1 x amplifier, 1 x user manual, 1 x power cord
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
465 W 1/8 power |
| Protection class: |
Protection class I |
| Output power: |
2 x 1200 W RMS (4 ohms)
2 x 880 W RMS (8 ohms) |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Frequency range: |
30 - 20000 Hz |
| S/N ratio: |
>100 dB |
| THD: |
<0,02 % at 1 kHz |
| Cooling: |
Cooling fan |
| Impedance: |
Input: 20 kOhm , bal.
Input: 10 kOhm , unbal. |
| Housing color: |
Black matte |
| Circuitry: |
Class D |
| Control elements: |
Power switch, level control per channel, groundlift selector |
| Controls: |
Short-circuit; overheat; DC voltage; power on/off transients; softstart; power on/off transient; limiter |
| Status LED: |
Power, signal, limit, protect |
| Connections: |
Input: line via 2 x 3-pin XLR
Link: line via 2 x 3-pin XLR
Output: speaker via 2 x speaker built-in socket (F) |
| Input sensitivity: |
1,25 V |
| Housing design: |
(19") 48.3 cm rack installation 1 U |
| Dimensions: |
Width: 48,3 cm
Depth: 35,5 cm
Height: 4,45 cm |
| Weight: |
6,40 kg |
| Item information |
Value |
| Shipping weight: |
10,10 kg
|
| Item weight: |
7,75 kg
|
| Dimensions
( Length × Width × Height ):
|
7,00 × 59,00 × 475,00 cm |
