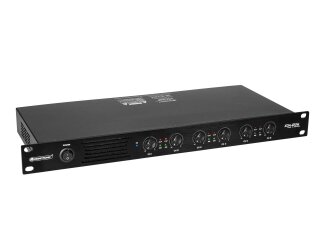

Class D multi-channel PA amplifier with SMPS, 6 x 200 W RMS (4 ohms), 6 x 150 W RMS (8 ohms)
- Extremely low weight and height due to integrated switch mode power supply
- Level control per channel
- (19") 48.3 cm rack installation 1 U
- For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental; sports centres/gyms
Package contents
- 1 x amplifier, 1 x user manual, 1 x power cord, 6 x screw plug-in terminal, 4 x foot
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
1440 W |
| Protection class: |
Protection class I |
| Output power: |
6 x 200 W RMS (4 ohms)
6 x 150 W RMS (8 ohms) |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Device fuse: |
5 x 20 mm, T 8 A fuse replaceable |
| Frequency range: |
20 - 20000 Hz |
| S/N ratio: |
>100 dB |
| THD: |
<0,05 % at 1 kHz |
| Impedance: |
Input: 20 kOhm , bal.
Input: 10 kOhm , unbal. |
| Housing color: |
Black matte |
| Circuitry: |
Class D |
| Control elements: |
Power switch, level control per channel |
| Controls: |
Softstart; overheat; overload; short-circuit; DC voltage |
| Status LED: |
Power, signal, clip |
| Connections: |
Input: line via 6 x 3-pin XLR
Input: 6 x screw plug-in terminal
Link: line via 6 x screw plug-in terminal
Output: speaker via 6 x screw plug-in terminal |
| Housing design: |
(19") 48.3 cm rack installation 1 U |
| Dimensions: |
Width: 48,3 cm
Depth: 20,5 cm
Height: 4,4 cm |
| Weight: |
3,75 kg |
| Item information |
Value |
| Shipping weight: |
5,60 kg
|
| Item weight: |
4,30 kg
|
| Dimensions
( Length × Width × Height ):
|
13,00 × 52,00 × 295,00 cm |
