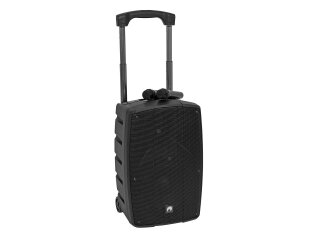

Mobile 12" PA system with battery operation, audio player, Bluetooth and 2 wireless microphones
- Portable all-in-one PA system with 80 watts output power
- Cordless, flexible and versatile
- 3-channel power mixer
- Power-efficient and battery-saving biamp amplifier with DSP control
- Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
- 2 mono input channels mic/line and hi-Z instrument (CH 2) with echo effect and feedback suppression
- 1 stereo input channel for internal audio player and external line signal sources with talkover switch
- UHF receiver units and 2 matching wireless microphones
- 1 additional battery can be retrofitted for up to 8 hours operating time
- Signal limiter and crossover, DSP-controlled
- Common 2-band EQ for highs and lows
- With accessory compartment
- For application areas such as: Theater; mobile use; wedding/gala/events; product presentations and lectures
- Battery operation up to 4h depending on program used
- Black metal grille
audio player
- 2.4 GHz license-free worldwide
- Control via Bluetooth; IR remote control
- Bluetooth: operating range up to 20m
microphone
- Polar pattern: Cardioid
- Operating range up to 30m
- UHF 863 - 865 MHz License-free and approved in Europe
Package contents
- 2 x microphone, 2 x user manual, 1 x power cord, 1 x battery, 1 x compact cabinet speaker, 1 x declaration of conformity, 1 x battery pack, 1 x remote control, 2 x antenna
Power supply: |
100-240 V AC, 50/60 Hz Or 12V DC |
Protection class: |
Protection class I |
Output power: |
80 W RMS |
Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) Battery/battery pack |
Cable length: |
1,5 m |
Device fuse: |
5 x 20 mm, T 1,6 A fuse replaceable |
Battery pack type: |
1 x lithium ion 12,8 V, 8000 mAh, 102,4 Wh |
Battery pack: |
Battery operation up to 4h depending on program used Recharging time 4h |
Frequency range: |
50 - 20000 Hz |
THD: |
<0,1 % at 1 kHz |
Sensitivity: |
98 dB (1W/1m) |
Max. SPL: |
121 dB |
Bluetooth device name: |
OMNITRONIC |
Attachment system: |
Flange: Ø 35mm |
Control elements: |
Level control per channel, echo effect control, talkover |
Status LED: |
Power, limit, charge status indicator |
Connections: |
Input: line via 1 x 3.5 mm jack (stereo) mounting version Input: line via 1 x stereo RCA Input: mic/line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: 3-pin XLR |
Equalizer: |
2-band tone control |
Speaker: |
1 x woofer 12" with ferrit magnet Basket material: steel Conematerial: cardboard/paper 1 x tweeter 1" |
Type of speaker: |
Wireless PA system |
Switch: |
On/off switch |
Material: |
Plastic |
Color: |
Black |
Dimensions: |
Length: 31 cm Width: 36 cm Height: 56 cm |
Weight: |
13,30 kg |
Microphone |
Power supply: |
3V DC |
Capsule type: |
Dynamic |
Polar pattern: |
Cardioid |
Battery: |
2 x Mignon (AA) (not included) |
Range: |
Range up to 30m |
Frequency band: |
UHF 863 - 865 MHz |
Dimensions: |
Length: 24 cm Diameter: Ø 5,1 cm |
Audio player |
Control: |
Bluetooth; IR remote control |
Bluetooth: |
Version: 5 with stereo link (TWS) |
Audio player: |
USB + SD + Bluetooth |
Range: |
Bluetooth: range up to 20m |
Frequency band: |
2.4 GHz |
Music format: |
MP3, WMA |
Available storage media: |
USB devices/SD cards max. 32GB (FAT 32) |
Remote control |
Battery: |
1 x button cell 3.0 V CR2025 lithium manganese built-in |
Item information |
Value |
Shipping weight: |
18,80 kg
|
Item weight: |
14,50 kg
|
Dimensions
( Length × Width × Height ):
|
625,00 × 41,00 × 37,00 cm |
