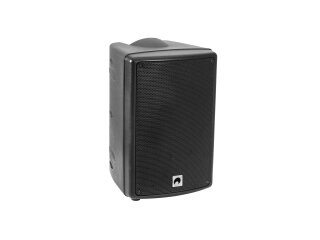

Compact, lightweight and useful: The WAMS-08BT MK2 is an extremely lightweight yet powerful PA system with rechargeable battery for mobile use. Whether for street musicians, at lectures, family get-togethers or in the aerobics group: Thanks to the versatile connection options you are flexible on the road.The great-sounding all-in-one system with power-efficient class D amplifier and 40 watts output power neither requires power nor audio cables. Enjoy music wirelessly from your smartphone or any other Bluetooth device via the integrated Bluetooth audio receiver. Get a wireless microphone system instantly by plugging in the optional USB dongle which comes with two wireless microphones. Thanks to the 863-865 MHz harmonized frequency band, this system does not require a license.The 2-way bass reflex system with 20 cm (8") woofer provides powerful sound despite the small size. Equipped with a 3-channel power mixer, the WAMS-08BT MK2 also features an MP3 player with SD card slot, USB port and IR remote control. A stereo input channel for line sources (e.g. CD player or notebook) and two mono input channels for instruments or cabled microphones provide additional flexibility. The 2-band EQ lets you control bass and treble. The powerful 11 V battery allows for continuous playback at full volume for up to 4 hours. By retrofitting an additional battery, the operation time can even be doubled. The WAMS-08BT MK2 is easy to carry thanks to its handle and weighs only 7 kg. It is prepared for tripod mounting with a flange.
Mobile 8" PA system with battery operation, audio player, Bluetooth and wireless microphones (optional)
- Portable all-in-one PA system with 40 watts output power
- 3-channel power mixer
- 2-way bass-reflex system
- UWM-2HH USB dongle with 2 wireless microphones available as accessory
- USB port can also be used for charging mobile devices
- 1 additional battery can be retrofitted for up to 8 hours operating time
- 2 mono input channels mic/hi-Z instrument with adjustable echo effect
- 1 stereo input channel for line signal sources e.g. CD players and notebooks
- Common 2-band EQ for highs and lows
- For application areas such as: Theater; mobile use; wedding/gala/events; product presentations and lectures
- Black metal grille
- Recessed carrying handle
- Application possibility: Standing; on stand
- Battery pack tool-free replacement
- Integrated automatic charging of the battery and status indicator
- The device is cooled by passive convection cooling
battery pack
- Battery operation up to 4h depending on program used
- Cordless, flexible and versatile
audio player
- Control via IR remote control; Bluetooth
- 2.4 GHz license-free worldwide
- Bluetooth: operating range up to 10m
remote control
- Operating range up to 10m
Package contents
- 1 x compact cabinet speaker, 1 x power cord, 1 x battery pack, 1 x remote control, 1 x battery, 1 x user manual, 1 x declaration of conformity
| Power supply: |
100-240 V AC, 50/60 Hz
Or
12V DC |
| Power consumption: |
65 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Output power: |
40 W RMS |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Battery/battery pack |
| Frequency range: |
50 - 18000 Hz |
| THD: |
<0,1 % at 1 kHz |
| Sensitivity: |
90 dB (1W/1m) |
| Max. SPL: |
106 dB |
| Cooling: |
Passive convection cooling |
| Housing color: |
Black |
| Attachment system: |
Flange: Ø 35mm |
| Control elements: |
Echo effect control, audio player |
| Status LED: |
Power, peak, microphone, charge status indicator, pairing |
| Connections: |
Input: Mic/Hi.Z. via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 1 x stereo RCA
Input: stereo via 1 x 3.5 mm jack (stereo) mounting version
Input: 1 x USB A (F) mounting version |
| Channels: |
Microphon chanal: 2 x mono with Mic-Hi.Z. switch via Combination socket (XLR/jack), channel control via rotary dial
Input chanel: 1 x stereo via RCA or jack plug or player, channel control via rotary dial
Input chanel: 2 x mono via radio, channel control via rotary dial
Master output: mono, channel control via rotary dial, 2-band tone control EQ |
| Speaker: |
1 x woofer 8"
Basket material: steel
Conematerial: cardboard/paper
1 x tweeter |
| USB port: |
Type A |
| Type of speaker: |
Compact cabinet speaker; wireless PA system |
| Recessed carrying handle: |
1 pc/pcs |
| Material: |
ABS Acrylonitrile butadiene styrene |
| Color: |
Black |
| Dimensions: |
Width: 27 cm
Depth: 29 cm
Height: 42 cm |
| Weight: |
7,75 kg |
| Battery pack |
| Battery pack type: |
1 x lithium ion 11,1 V, 4000 mAh, 44,4 Wh |
| Battery pack: |
Battery operation up to 4h depending on program used
Recharging time 4h |
| Audio player |
| Control: |
IR remote control; Bluetooth |
| Bluetooth device name: |
WAMS-08BT MK2 |
| Audio player: |
USB + SD + Bluetooth |
| Range: |
Bluetooth: range up to 10m |
| Frequency band: |
2.4 GHz |
| Music format: |
MP3, WMA; WAV |
| Available storage media: |
USB devices/SD cards max. 32GB (FAT 32) |
| Remote control |
| Battery: |
1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Range: |
Range up to 10m |
| Item information |
Value |
| Shipping weight: |
11,00 kg
|
| Item weight: |
8,50 kg
|
| Dimensions
( Length × Width × Height ):
|
48,00 × 32,00 × 32,00 cm |
