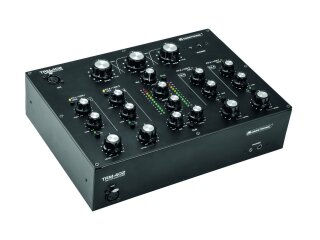

4-channel rotary mixer with 3-band frequency isolator for DJs
- Classic rotary mixer with 4 input channels and integrated 3-band frequency isolator for DJs
- Gain control, 2-way equalizer (highs/lows) and phono/line switching per channel
- Dedicated boost and kill cut
- Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
- Classic ALPS potentiometers (Blue Velvet RK27)
- High-grade components ensure long life and excellent sound quality
- DJ microphone input with separate level control
- Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function
- 12-digit stereo LED level meter and master level control
- Booth output with separate level control
- Dual inputs for DJ microphone and headphones on the top and front panel
- Outputs: master and booth (XLR/RCA L/R), record (stereo RCA)
- Desktop console housing
- For application areas such as: Clubs/dancing school; mobile use; mobile djs / entertainer; homerecording and studios
Package contents
- 1 x device, 1 x power cord, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
7,2 W |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: |
20 - 20000 Hz microphone
20 - 20000 Hz line
40 - 18000 Hz phono |
| S/N ratio: |
>77 dB phono
>80 dB microphone
>85 dB line |
| THD: |
Line <0,03 % at 1 kHz
Phono <0,1 % at 1 kHz |
| Gain: |
Microphone 44 dB
Line 20 dB
Phono 60 dB to +75 dB |
| Isolators: |
Master Gain:- ∞ bis +9
Low/mid 300 Hz, 18db/oct , Butterworth
Mid/high 4000 Hz, 18db/oct , Butterworth |
| Control elements: |
Power switch, source selector, cue mix split function, tone control |
| Status LED: |
Power, master level meter, chanal source, CUE, microphone |
| Connections: |
Input: line via 4 x stereo RCA
Input: line/phono via 4 x stereo RCA
Input: microphone via 2 x 3-pin XLR
Output: headphones via 2 x 6.3 mm jack socket (stereo) mounting version
Output: headphones via 2 x 3.5 mm jack (stereo) mounting version
Output: rec. via 1 x stereo RCA
Output: booth via 2 x 3-pin XLR
Output: booth via 1 x stereo RCA
Output: master via 2 x 3-pin XLR
Output: master via 1 x stereo RCA |
| Channels: |
Input chanel: 4 x stereo with line-line/phono switch via RCA, channel control via rotary, 2-band tone control EQ, gain control, phono gain rotary, CUE switch, source selector
Microphon chanal: 1 x mono via XLR, channel control via rotary dial, ON AIR switch
Booth output: 1 x stereo via XLR or RCA, channel control via rotary dial
Master output: 1 x stereo via XLR or RCA, channel control via rotary dial
Headphones output: 1 x stereo via jack, channel control via rotary dial, cue mix split function |
| Max. level: |
Output: +22 dBu |
| Material: |
Metal |
| Color: |
Black |
| Housing design: |
Desktop console housing |
| Dimensions: |
Width: 33 cm
Depth: 24,7 cm
Height: 10,7 cm |
| Weight: |
4,05 kg |
| Item information |
Value |
| Shipping weight: |
6,00 kg
|
| Item weight: |
4,60 kg
|
| Dimensions
( Length × Width × Height ):
|
145,00 × 425,00 × 295,00 cm |
